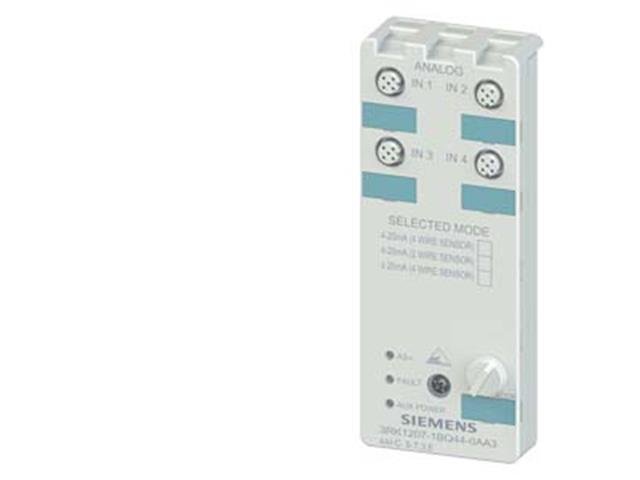

| AS-i compact module K60 analog 4 AI, IP67 4 x input, current 4..20 mA, +/- 20 mA for 4-wire sensors 4 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately |
| General technical data |
| design of the product |
|
analog I/O modules for operation in the field, IP67 - K60 |
| Type of device |
|
analog input modules for current measurement |
| Type |
|
4 inputs |
| design of the slave type |
|
analog slave |
| I/O configuration |
|
7 |
| ID code |
|
3 |
| type of electrical connection of the inputs and outputs |
|
M12 screw-type terminals |
| consumed current from profile conductors of the AS-Interface at 30 V maximum |
mA |
160 |
| operating voltage according to AS-Interface spezification |
V |
26.5 ... 31.6 |
| Current consumption when connected |
|
|
| ● 2 sensors |
|
|
| — without Uaux infeed max |
mA |
46 |
| — from Uaux infeed max. |
mA |
500 |
| Voltage supply auxiliary voltage additional for sensors Uaux |
V |
24 ... 30 |
| profile |
|
7.3 |
| Measuring/output value |
|
current |
| Measuring/output range |
|
adjustable: 4 ... 20 mA / +-20 mA |
| Smoothing function |
|
configurable |
| Line filter |
Hz |
50 |
| Channels active |
|
4 |
| A/D resolution for analog inputs/outputs |
bit |
16 |
| type of connection technology |
|
4-conductor |
| Inputs |
| number of analog inputs |
|
4 |
| Inputs sensors |
|
2/3/4-conductor sensors |
| input variable |
|
mA |
| product function input variable parameterizable |
|
Yes |
| number of analog outputs |
|
0 |
| output quantity |
|
mA |
| Status display |
|
|
| ● AUX PWR (Uaux) |
|
green LED |
| ● AS-Interface |
|
green LED |
| ● FAULT |
|
red LED |
| Ambient conditions |
| ambient temperature |
|
|
| ● during operation |
°C |
-20 ... +60 |
| ● during storage |
°C |
-40 ... +85 |
| protection class IP |
|
IP67 |
| Mechanical data |
| width |
mm |
60 |
| height |
mm |
152 |
| depth |
mm |
29 |
| fastening method |
|
standard rail mounting/wall mounting using mounting plate for K60 compact module |
