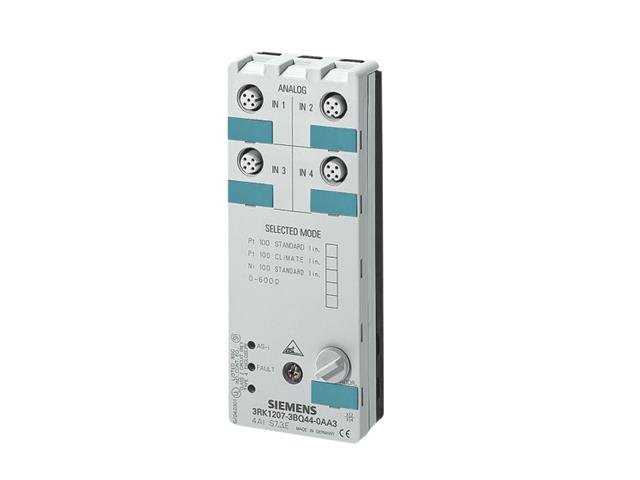

3RK1207-3BQ44-0AA3

GENERAL TECHNICAL DATA:

DESIGN OF THE PRODUCT: Analog I/O Modules For Operation In The Field, IP67 - K60

DEVICE TYPE:Analog Input Modules for Thermal Resistor

TYPE: 4 Inputs

DESIGN OF THE SLAVE TYPE: Analog Slave

I/O CONFIGURATION: 7

ID CODE: 3

TYPE OF ELECTRICAL CONNECTION OF THE INPUTS AND OUTPUTS: M12 Screw-type Terminals

TOTAL CURRENT INPUT / WHEN CONNECTED / FROM SENSORS/ACTUATORS: 150 MA

OPERATING VOLTAGE ACCORDING TO AS-INTERFACE SPEZIFICATION: 26.5 ... 31.6 V

CURRENT CONSUMPTION / WHEN CONNECTED:
- 2 Sensors / Without Uaux Infeed / Max:  46mA
- 2 Sensors / From Uaux Infeed / Max:  500mA

VOLTAGE SUPPLY / AUXILIARY VOLTAGE / ADDITIONAL / FOR SENSORS: Uaux 24 … 30V

PROFILE: 7.3

MEASURING/OUTPUT VALUE: Thermal Resistor/Resistor

MEASURING/OUTPUT RANGE: Adjustable: PT100 / Ni100 / 0 ... 600 Ohm
