GENERAL TECHNICAL DATA:

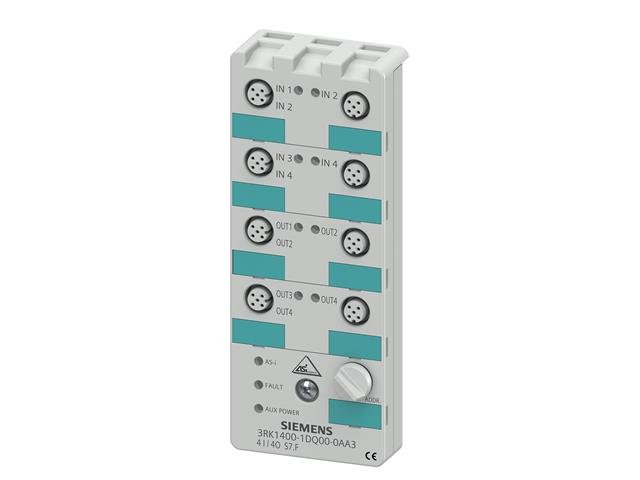

DESIGN OF THE PRODUCT: Digital I/O Modules For Operation In The Field, IP67 - K60
TYPE: 4 Inputs / 4 Outputs
DESIGN OF THE SLAVE TYPE: Standard Slave
I/O CONFIGURATION: 7
ID/ID2 CODE: F/F
NUMBER I/O SOCKETS: 8
TYPE OF ELECTRICAL CONNECTION OF THE INPUTS AND OUTPUTS: M12 Screw-type Terminals
AS INTERFACE TOTAL CURRENT INPUT MAX: 270 MA
OPERATING VOLTAGE ACCORDING TO AS-INTERFACE SPEZIFICATION: 26.5 ... 31.6 V
GROUND TERMINAL: PIN5 Of Each M12 Socket Is Connected To The Grounding Wrist Strap In The Mounting Plate Using A Pin
ADDRESSING: Front Addressing Socket
NOTE 1: The Modules Are Delivered Without Mounting Plate
NOTE 2: An External Additional Supply (AUX POWER) Of 20V - 30V DC Is Required For The Supply Of The Output Circuits. The Additional Supply Must Comply With VDE 0106 (PELV), Protection Class III
SENSOR SUPPLY:
TYPE OF VOLTAGE SUPPLY FOR POWER SUPPLY: Using AS-Interface
INPUT VOLTAGE: 20 ... 30 V
PROPERTY OF THE SENSOR SUPPLY SHORT-CIRCUIT AND OVERLOAD RESISTANT: Yes
AMPACITY OF THE SENSOR SUPPLY FOR ALL INPUTS: (At Ambient Temperature 40 °C) 200 MA
INPUTS:
NUMBER OF DIGITAL INPUTS: 4
TYPE OF CONNECTION TECHNOLOGY: 2- & 3-Wire Technology
INPUT CIRCUIT: PNP Transistor
TYPE OF VOLTAGE OF THE INPUT VOLTAGES: DC
INPUTS SWITCHING LEVEL HIGH MIN: 10 V
INPUT CURRENT AT DIGITAL INPUT:
● For Signal <1> Minimum: 6 MA
● With Signal <0> Maximum: 1.5 MA
INPUTS:
● SENSOR SUPPLY USING AS-INTERFACE: Short-circuit And Overload Resistant
● SOCKET ASSIGNMENT:
— PIN 1: Sensor Supply L+
— PIN 2: Data Input II
— PIN 3: Sensor Supply L-
— PIN 4: Data Input I
— PIN 5: Ground Terminal
DESIGN OF THE PIN ASSIGNMENT OF THE INPUTS: Y-II assignement
OUTPUTS:
NUMBER OF DIGITAL OUTPUTS:4
TYPE OF VOLTAGE OF OUTPUT VOLTAGES:DC
OUTPUTS EXTERNAL POWER SUPPLY 24 V DC:Using Black As-interface Flat Cable
AMPACITY OF THE SEMICONDUCTOR OUTPUT AT DC-13 AT 24 V:2A
OUTPUTS AGGREGATE CURRENT MAX:4A
TYPE OF SWITCHING OUTPUT:PNP TRANSISTOR
DESIGN OF THE PIN ASSIGNMENT OF THE OUTPUTS: Y-II ASSIGNEMENT
OUTPUTS SOCKET ASSIGNMENT:3 = "-", 2/4 = OUTPUT, 5 = GROUND TERMINAL
PROPERTY OF THE OUTPUT SHORT-CIRCUIT PROOF: Yes
OUTPUTS:
● SHORT-CIRUIT PROTECTION: Built-in
● INDUCTION PROTECTION: Built-in
● WATCHDOG: Built-in
MECHANICAL DATA:
WIDTH: 60 MM
HEIGHT: 152 MM
DEPTH: 29 MM
FASTENING METHOD: Standard Rail Mounting/wall Mounting Using Mounting Plate For K60 Compact Module
SHOCK RESISTANCE: 15G / 11 M
