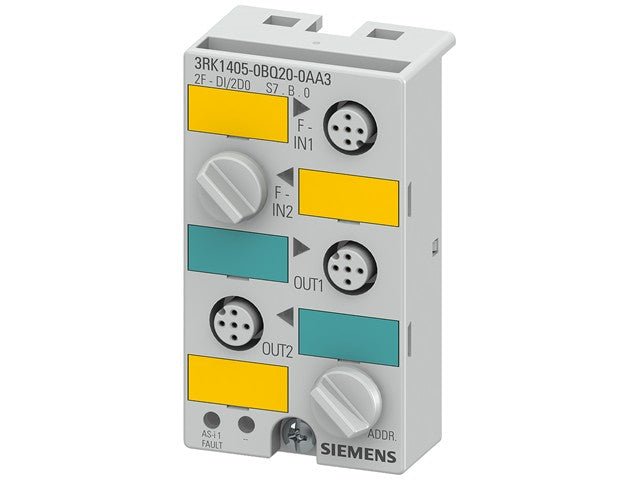

ASIsafe Compact Module K45F Digital Safety, 2 F-DI/2 DQ, IP67 2 x Input For Mechanical Sensors 2 x Standard Output 24VDC
ASIsafe Compact Module K45F Digital Safety
Specifications
Description: ASIsafe compact module K45F – digital safety module with 2 safe inputs (F-DI) and 2 standard outputs (DQ), IP67 enclosure; 4 x M12 sockets.
I/O Configuration: 2 Safety-related digital inputs (mechanical sensors); 2 standard digital outputs (solid state, 24 V DC)
Operating Voltage: AS-Interface: 26.5 to 31.5 V DC; AS-Interface total input current max: 250 mA
Output Supply: 24 V DC provided via U_ASI (AS-Interface)
Output Current: Rated output current: 0.15 A per output (150 mA)
Electrical Connection: M12 connectors for both inputs and outputs; total of 4 I/O sockets
Addressing: Front addressing socket
Indicators / LEDs: Yellow LEDs for I/O status; Green/Red LEDs for AS-Interface status/diagnostics
Ambient Temperature: Operating: –25 °C to +70 °C; Storage: –40 °C to +85 °C
Protection Class: IP67 – fully dust-tight, protected against temporary immersion in water
Enhance your safety systems with the ASIsafe Compact Module K45F. This robust digital safety module features 2 safe inputs and 2 standard outputs in an IP67-rated enclosure, ensuring reliability in challenging environments. Ideal for mechanical sensors, it supports seamless integration with your existing AS-Interface setup, offering peace of mind and exceptional performance.
