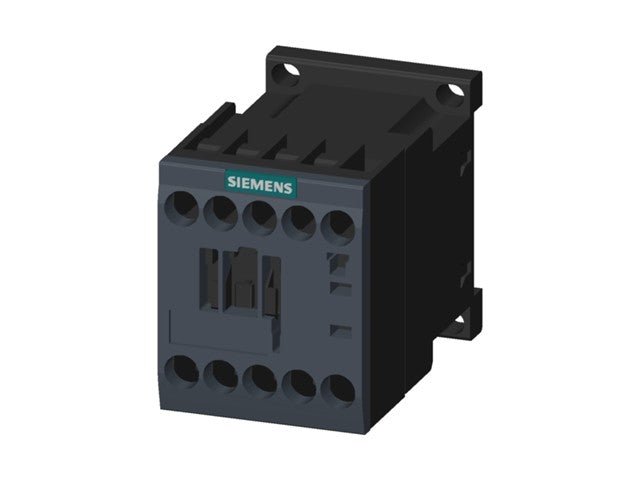

3RT2017-1BB41
3RT2017 - 1BB41 - Industrial Automation - 4011209784024
3RT2017-1BB41
3RT2017-1BB41
3RT2017 - 1BB41 - Industrial Automation - 4011209784024
3RT2017-1BB41

3RT2017-1BB41

SKU: 3RT2017-1BB41

BRAND: Siemens


Sold Out

Collections: Electromechanical

Type: Industrial Automation

Category: Power Contactor

Power Contactor, AC-3E/AC-3, 12 A, 5.5 KW / 400 V, 3-Pole, 24 V DC, Auxiliary Contacts: 1 NO,

Power Contactor

Specifications

  • Product: Siemens SIRIUS Power Contactor
  • Model Number: 3RT2017-1BB41
  • Series: SIRIUS 3RT2
  • Contactor Size: S00
  • Number of Poles (Main Contacts): 3-pole
  • Main Contact Configuration: 3 NO (normally open)
  • Auxiliary Contacts (Built-in): 1 NO
  • Rated Operational Current (AC-3): 12 A @ 400 V AC
  • Rated Operational Power (AC-3): 5.5 kW @ 400 V AC
  • Rated Operational Current (AC-1): 22 A @ 400 V AC
  • Control / Coil Voltage: 24 V DC
  • Terminal Type: Screw terminals
  • Connection Type (Main Circuit): Screw connection
  • Mounting Method: DIN rail (35 mm) or panel mounting
  • Protection Class (Front): IP20
  • Rated Insulation Voltage (Ui): 690 V
  • Impulse Withstand Voltage (Uimp): 6 kV
  • Power Loss (Typical): Approx. 1.5 W total
  • Mechanical Service Life: Approx. 30,000,000 switching cycles
  • Electrical Service Life (AC-3): Approx. 1,000,000 operations
  • Operating Temperature: –25 °C to +60 °C
  • Storage Temperature: –55 °C to +80 °C
  • Shock Resistance: Up to 11 g (depending on waveform)
  • Dimensions (W × H × D): Approx. 45 × 73 × 58 mm
  • Weight: Approx. 0.29 kg
  • Standards / Compliance: IEC / EN 60947-4-1, UL, CSA, CE

Downloads

Additional Information

Device Contactor
Type Power | Contactor
