Power Contactor, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole, 110 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S0
Power Contactor
Specifications
- Product Type: Power Contactor
- Frame Size: S0
- Number of Poles: 3-Pole
- Main Contacts: 3 NO (Normally Open)
- Auxiliary Contacts: 1 NO + 1 NC (Integrated)
- Rated Operational Current (AC-3/AC-3e): 25 A
- Rated Motor Power: 11 kW at 400 V AC
- Coil Voltage: 110 V AC, 50 Hz
- Rated Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Terminal Type: Screw Terminals
- Mounting: 35 mm DIN Rail or Panel Mount
- Mechanical Endurance: Up to 10 million operating cycles
- Electrical Endurance: Application dependent
- Degree of Protection: IP20 (front, when installed)
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -55°C to +80°C
- Relative Humidity: Up to 95% at 55°C
- Maximum Installation Altitude: 2,000 m
- Net Weight: Approximately 418 g
- Standards:
- IEC 60947-4-1
- IEC 60947-5-1
- UL/CSA Certified
- Typical Applications:
- Three-phase motor control
- Industrial automation
- Pump and fan control
- Conveyor systems
- HVAC equipment
- Machine building
- Industrial control panels
Additional Information
| Device |
Power Contactor |
| Type |
Power Contactor | AC-3e/AC-3 | 25 A |

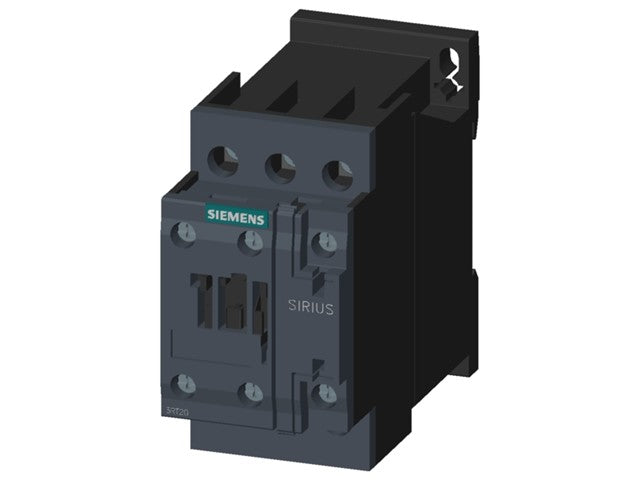

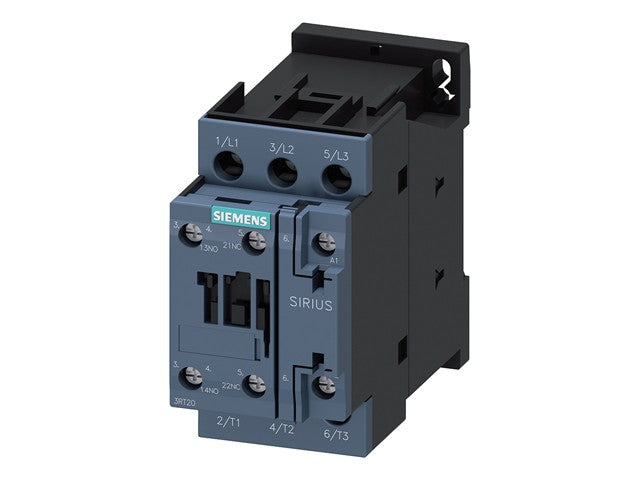

Upgrade your industrial automation with the 3RT2026-1AF00 Power Contactor. Designed for three-phase motor control, it efficiently handles up to 11 kW at 400 V, ensuring reliability and longevity with up to 10 million cycles. Perfect for HVAC, pumps, and conveyors, this compact solution enhances your system's performance while maintaining safety and compliance with IEC and UL standards.
