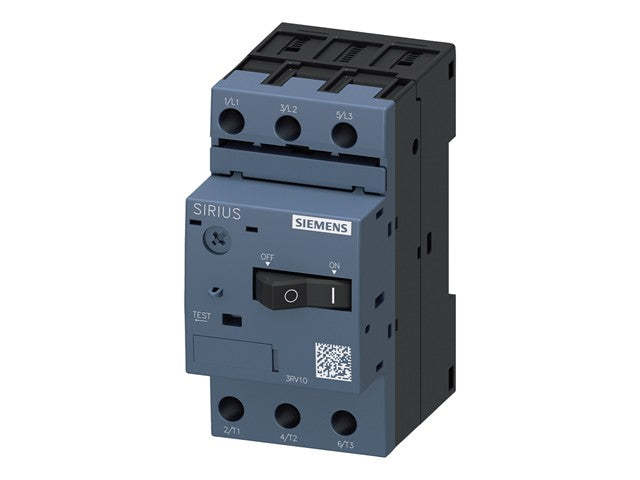

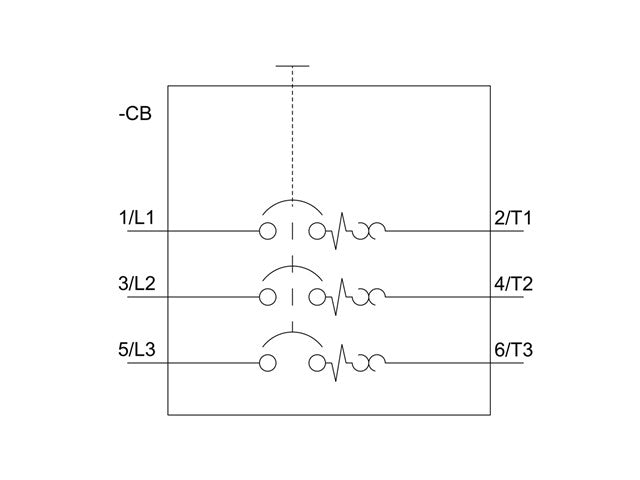

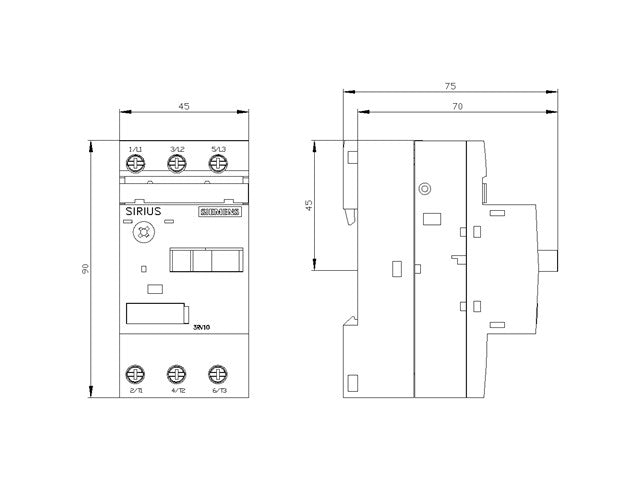

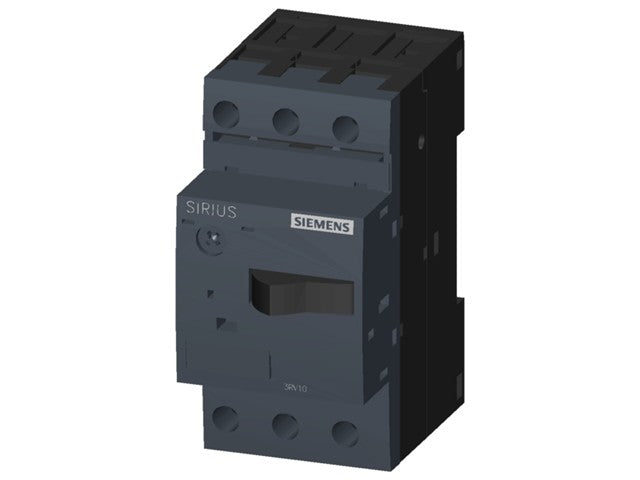

Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A Screw terminal Standard switching capacity
Circuit breaker
Specifications
- Product Type: Motor Protection Circuit Breaker (Motor Starter Protector)
- Frame Size: S00
- Number of Poles: 3
- Trip Class: Class 10
- Adjustable Thermal Overload Setting: 7–10 A
- Magnetic Short-Circuit Trip: 130 A
- Rated Operational Current (Ie): 10 A
- Rated Operational Voltage (Ue): Up to 690 V AC
- Frequency: 50/60 Hz
- Motor Power Rating:
- 2.2 kW @ 230 V AC
- 4.0 kW @ 400 V AC
- 5.5 kW @ 500 V AC
- 7.5 kW @ 690 V AC
- Breaking Capacity (Icu):
- 100 kA @ 240 V AC
- 50 kA @ 400 V AC
- 3 kA @ 500 V AC
- 2 kA @ 690 V AC
- Terminal Type: Screw Terminals
- Mounting:
- 35 mm DIN Rail
- Panel Mount
- Protection Features:
- Thermal overload protection
- Magnetic short-circuit protection
- Phase-failure sensitivity
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Protection Rating: IP20 (Front)
- Touch Protection: Finger-safe
- Operating Position: Any
- Operating Temperature: -20°C to +60°C
- Weight: Approximately 0.28 kg
- Standards:
- IEC 60947-2
- IEC 60947-4-1
- IEC 60947-5-1
- Typical Applications:
- Motor protection
- Industrial control panels
- Pumps
- Compressors
- Conveyors
- HVAC systems
- General machine building
Downloads
Additional Information
| Device |
Circuit breaker |
| Type |
Circuit | Breaker | Size | S00 | Motor | Protection |
Protect your motors with the 3RV1011-1JA10 Motor Protection Circuit Breaker. Designed for reliability, it features adjustable thermal overload and magnetic short-circuit protection, ensuring optimal performance for industrial applications. With a robust design and high breaking capacity, this circuit breaker safeguards your equipment, enhancing safety and efficiency in any setup.
