3RV1011 - 1JA15 - Industrial Automation - 4011209381858

3RV1011-1JA15

Name: 3RV1011-1JA15 - Communica [Part No: 3RV1011-1JA15]
Brand: Siemens
SKU: 3RV1011-1JA15
Price: 2031 ZAR
Availability: OutOfStock

SKU: 3RV1011-1JA15

BRAND: Siemens

Sold Out
R 2,335.65_{(inc VAT)}
R 2,031.00_{(ex VAT)}

Collections:

Type: Industrial Automation

Category: Circuit Breaker

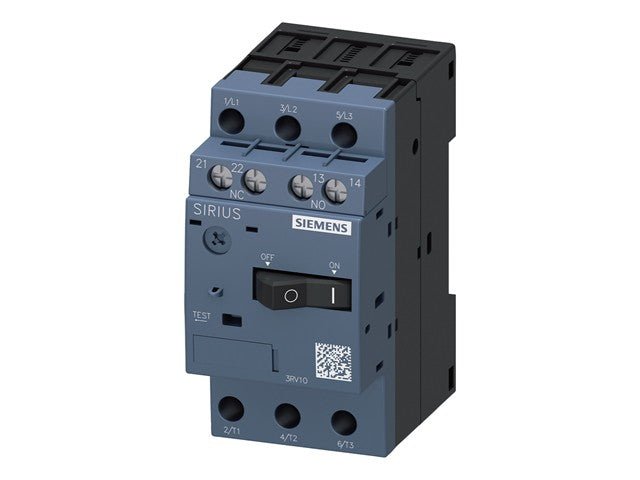

Siemens Circuit Breaker Size S00 For Motor Protection, Class 10 A- With Transverse Auxiliary Switch 1 NO+1 NC

Siemens Circuit Breaker

Specifications

Manufacturer: Siemens;
Part Number: 3RV1011-1JA15;
Product Family: SIRIUS 3RV1;
Module Type: Motor Protection Circuit Breaker (MPCB);
Frame Size: S00;
Number of Poles: 3-pole;
Rated Current Setting Range: 7–10 A;
Short-Circuit Release (Magnetic): 130 A;
Rated Operational Voltage: 220–690 V AC;
Rated Motor Power:
2 kW @ 230 V;
4 kW @ 400 V;
Trip Class: Class 10;
Auxiliary Contacts: 1 NO + 1 NC (integrated);
Breaking Capacity: Up to 50 kA @ 400 V;
Connection Type: Screw terminals;
Mounting Type: DIN rail mounting (35 mm);
Degree of Protection: IP20;
Operating Temperature Range: −20 °C to +60 °C;

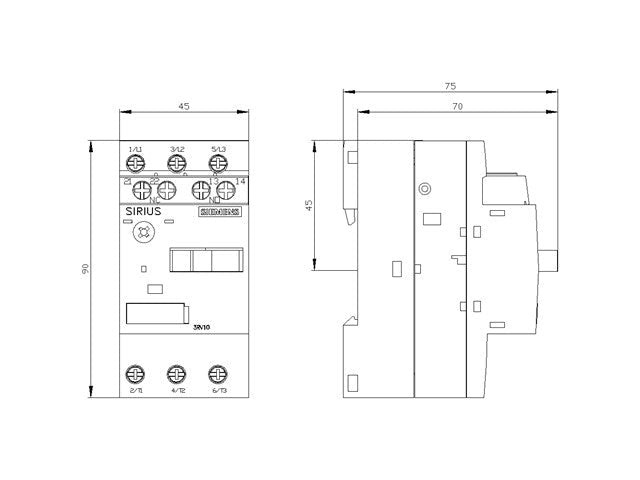

Dimensions (Approx.): 90 × 45 × 75 mm;
Weight (Approx.): ~0.30 kg;
Typical Application: Protection of three-phase motors against overload and short circuit;
Country of Manufacture: Germany;

Downloads

Datasheet

Additional Information

Device	Circuit Breaker
Type	Siemens \| Circuit \| Breaker

Ensure your motor operates safely with the Siemens 3RV1011-1JA15 Circuit Breaker. Designed for optimal protection against overload and short circuits, this reliable 3-pole breaker features a compact design and high breaking capacity, making it ideal for various industrial applications. Trust Siemens for superior quality and performance in motor protection.
