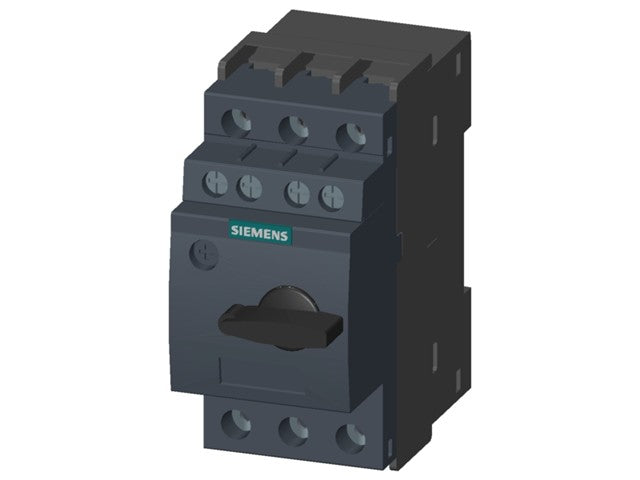

Circuit breaker frame size S00 for motor protection, Class 10 thermal release 9...12.5 A short-circuit release 163 A screw terminal standard switching capacity with transverse auxiliary switch 1 NO+1 NC
Circuit Breaker
Specifications
- Product Type: Motor Protection Circuit Breaker (MPCB)
- Frame Size: S00
- Number of Poles: 3-Pole
- Thermal Overload Trip Setting (Class 10): 9–12.5 A (adjustable)
- Magnetic Short-Circuit Trip: 163 A
- Rated Operational Voltage: 20–690 V AC, 50/60 Hz
- Rated Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Motor Power (400 V AC-3): 5.5 kW
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 NO + 1 NC (integrated)
- Mounting: 35 mm DIN Rail or Panel Mount
- Degree of Protection: IP20
- Mechanical Endurance: Up to 100,000 operating cycles
- Electrical Endurance: Up to 100,000 operating cycles
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -50°C to +80°C
- Relative Humidity: 10% to 95%
- Maximum Installation Altitude: 2,000 m
- Standards:
- IEC 60947-2
- IEC 60947-4-1
- IEC 60947-5-1
- Typical Applications:
- Three-phase motor protection
- Pump and fan control
- Conveyor systems
- Compressors
- Industrial machinery
- Control panels
- Factory automation
Downloads
Additional Information
| Device |
Circuit Breaker |
| Type |
Circuit | Breaker | Frame | Size | S00 | Motor | Protection |

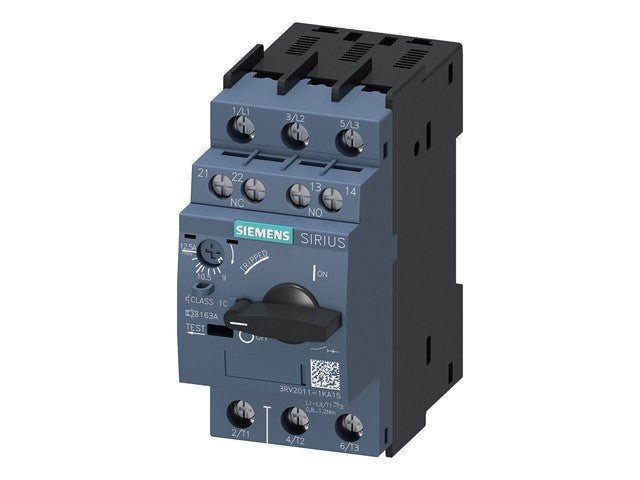

Ensure reliable motor protection with the 3RV2011-1KA15 circuit breaker. Designed for three-phase motors, it offers adjustable thermal settings and robust short-circuit protection, enhancing the safety of your industrial machinery. With a durable design suitable for various applications, this circuit breaker is ideal for pumps, fans, and factory automation systems. Elevate your equipment's performance and safety today!
