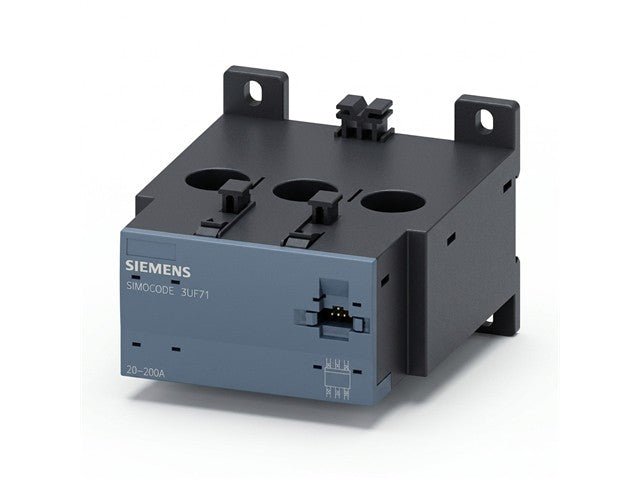

3UF7103-1AA00-0
SKU: 3UF7103-1AA00-0
BRAND: Siemens
R 5,035.85 (inc VAT) R 4,379.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Current Measuring Module, Set Current 20...200 A Overall Width 120 Mm, Straight-through Transformer
Current Measuring Module
Feature(s)
Designed for SIMOCODE pro motor management systems
Integrated current transformer for direct conductor pass-through
Supports comprehensive motor monitoring and protection
Compact modular design
High insulation and surge withstand capability
Suitable for industrial motor control centers and switchboards
Easy integration with SIMOCODE pro control modules
Specifications
Manufacturer: Siemens
Part Number: 3UF7103-1AA00-0
Product Family: SIMOCODE pro (SIRIUS)
Product Type: Current Measuring Module
Current Measuring Range: 20 A to 200 A
Current Transformer Type: Straight-through transformer
Current Measurement: Yes
Voltage Measurement: No
Active Power Measurement: No
Energy Measurement: No
Frequency Measurement: No
Overall Width: 120 mm
Height: 95 mm
Depth: 145 mm
Degree of Protection: IP20
Insulation Voltage: 690 V AC
Impulse Withstand Voltage: 8 kV
Operating Voltage: 110–690 V AC
Operating Frequency: 50–60 Hz
Power Consumption: 0.2 W
Mounting Method: Screw or snap-on mounting
Main Circuit Poles: 3
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +80°C
Maximum Installation Altitude: 4000 m
Relative Humidity: 5% to 95%
EMC Emission: Class A
EMC Immunity: Severity Level 3
Protection Functions: Current monitoring and motor protection support
Country of Origin: Germany
Downloads
Additional Information
Device
Module
Type
Current | Measuring | Module
Enhance your motor management with the Siemens 3UF7103-1AA00-0 Current Measuring Module. Designed for seamless integration with SIMOCODE pro systems, it offers precise current monitoring from 20 to 200 A, ensuring optimal motor protection and efficiency. Its compact design and robust insulation capabilities make it ideal for industrial settings, providing reliable performance under demanding conditions. Upgrade your control systems with this essential module for superior motor management.
