3UF7111-1AA01-0

Name: 3UF7111-1AA01-0 - Communica [Part No: 3UF7111-1AA01-0]
Brand: Siemens
SKU: 3UF7111-1AA01-0
Price: 4281.75 ZAR
Availability: InStock

SKU: 3UF7111-1AA01-0

BRAND: Siemens

R 4,924.01_{(inc VAT)}
R 4,281.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Industrial Automation

Category: Current / Voltage Measuring Module

Current/Voltage Measuring Module V2; Set Current 3...40 A, Voltage Measurement Up to 690 V,

Current/Voltage Measuring Module

Specifications

Product type: Current/voltage measuring module V2
Series: SIRIUS SIMOCODE pro 3UF7
Current measuring range: 3 to 40 A
Voltage measurement: Up to 690 V AC
Measuring functions:
- Current measurement
- Voltage measurement
- Active power measurement
- Power monitoring
- Frequency measurement
- Energy measurement
Measuring method:
- TRMS current measurement
- TRMS voltage measurement
Transformer type: Straight-through transformer
Overall width: 45 mm
Operating voltage:
- 110–690 V AC
- 50/60 Hz
Rated insulation voltage: 690 V
Surge voltage resistance: 6 kV
Protection class: IP20
Mounting method:
- Screw mounting
- Snap-on mounting

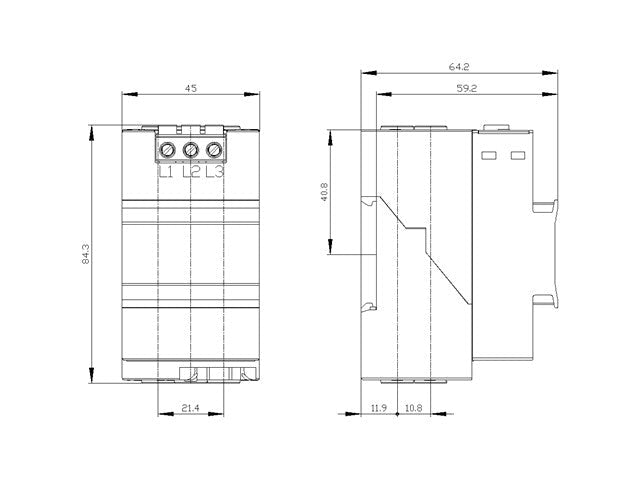

Dimensions:
- Width: 45 mm
- Height: 84 mm
- Depth: 64 mm
Operating temperature:
- -25 °C to +60 °C
Storage temperature:
- -40 °C to +80 °C
Maximum installation altitude:
- 4000 m
Net weight:
- Approx. 0.19–0.44 kg (varies by source listing)
Country of origin:
- Germany

Downloads

Datasheet

Additional Information

Device	Module
Type	Current/Voltage \| Measuring \| Module

Enhance your electrical system's efficiency with the 3UF7111-1AA01-0 Current/Voltage Measuring Module. This advanced module offers precise current measurements from 3 to 40 A and voltage readings up to 690 V, ensuring optimal power monitoring and management. Built for durability with a protection class of IP20, it operates seamlessly in various conditions, making it an essential tool for reliable energy measurement and performance.
