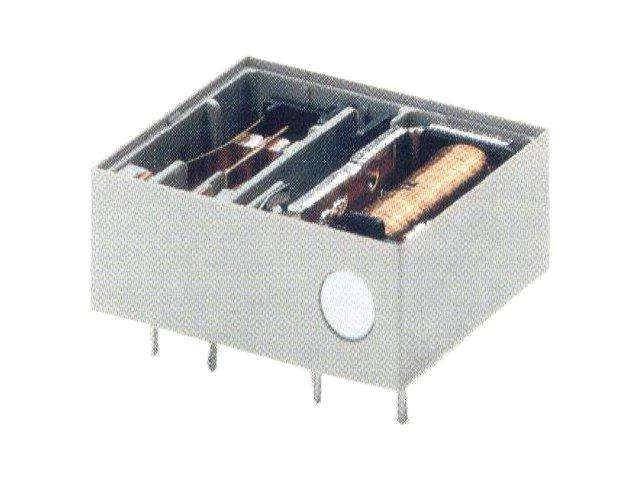

422-01-12VDC

SKU: 422-01-12VDC

BRAND: Communica


Medium - Hi Power Relay • Form 1C • VCoil= 12V DC • IMax Switching= 8A • RCoil= 330Ω • PCB • Horizontal Case

Overview

Features

Specification

  • Horizontal Case
  • Insulation Class C
  • 8mm Creepage Distance
Model 422-01-12VDC
Contact Form Form 1C
Size Category Std Size
Size 28x25x10mm
Termination PCB
Coil Rated Voltage 12V
AC/DC Voltage DC
Max. Switching Current 8A
Electrical Rating 8A/250VDC/400VAC
Coil Power 400mW Power
Coil Resistance 330Ω
Isolation Voltage 4KV
Approvals UL/CSA/VDE/SEV/S/D
Contact Material Ag
No. of Pins 5 Pin(s)
No. of Poles 1 Pole(s)
