SKU: 422-01-24VDC

BRAND: Communica

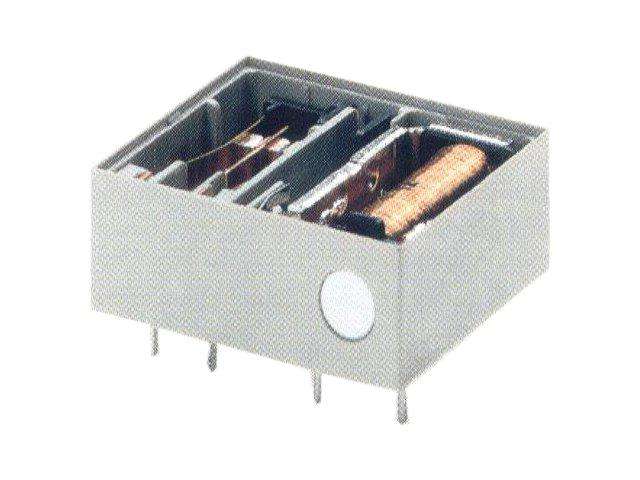

Medium - Hi Power Relay • Form 1C • VCoil= 24V DC • IMax Switching= 8A • RCoil= 1.2kΩ • PCB • Horizontal Case




  • Horizontal Case
  • Insulation Class C
  • 8mm Creepage Distance
    Model 422-01-24VDC
    Contact Form Form 1C
    Size Category Std Size
    Size 28x25x10mm
    Termination PCB
    Coil Rated Voltage 24V
    AC/DC Voltage DC
    Max. Switching Current 8A
    Electrical Rating 8A/250VDC/400VAC
    Coil Power 400mW Power
    Coil Resistance 1.2kΩ
    Isolation Voltage 4KV
    Approvals UL/CSA/VDE/SEV/S/D
    Contact Material Ag
    No. of Pins 5 Pin(s)
    No. of Poles 1 Pole(s)
