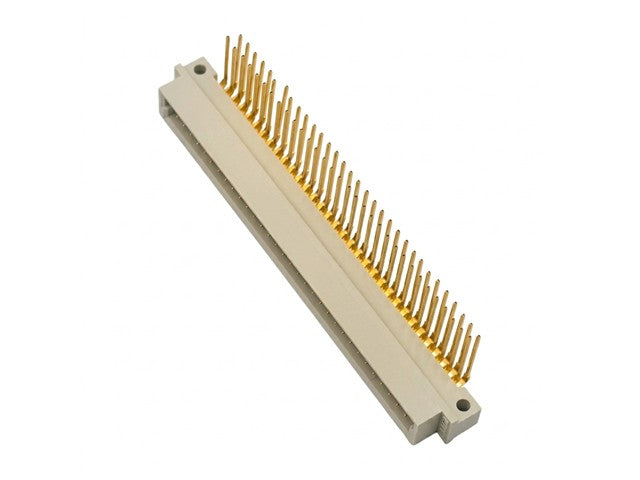

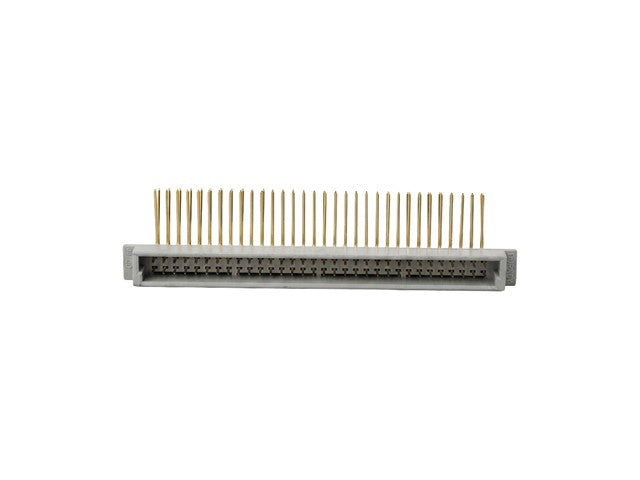

89314 Plug 64W Rows A,B (RAB) 90 Degrees Wire Wrap
PCB Plug Connector
Feature(s)
- DIN 41612 compliant connector
- 64-way male plug with Rows A & B
- Right-angle (90°) PCB mounting
- Gold-plated contacts for reliable conductivity
- Rugged glass-filled thermoplastic housing
- Low insertion force and secure mating
- Suitable for Eurocard and backplane systems
Specifications
- Product Type: DIN 41612 PCB Plug Connector
- Model Number: 89314
- Connector Style: Right-Angle (90°)
- Standard: DIN 41612 / IEC 60603-2
- Contact Arrangement: Rows A & B (RAB)
- Number of Contacts: 64
- Contact Configuration: 2 × 32
- Connector Gender: Male (Plug)
- Mounting Type: Through-Hole PCB Mount
- Orientation: Right-Angle (90°)
- Termination Type: Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold-Plated Contact Area over Nickel
- Housing Material: Glass-Filled Thermoplastic Polyester
- Housing Color: Grey
- Rated Current: Up to 1.5 A per Contact
- Rated Voltage: 1,000 V AC (Test Voltage)
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥10¹² Ω
- Dielectric Withstanding Voltage: 1,000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance: RoHS Compliant (manufacturer dependent)
Additional Information
| Device |
Connector |
| Type |
DIN41612 |
| Gender |
Male |
| No. of Contacts |
64 |
| No. of Pins |
64 |
| Termination |
Right Angled Wire Wrap |
| Row Positions |
Rows A,B |
Enhance your electronic projects with the 64P 6033 0431 6 DIN 41612 PCB Plug Connector. This 64-way male connector features gold-plated contacts for superior conductivity and a rugged, reliable design, perfect for Eurocard and backplane systems. With its low insertion force and secure mating, ensure optimal performance in your applications.
