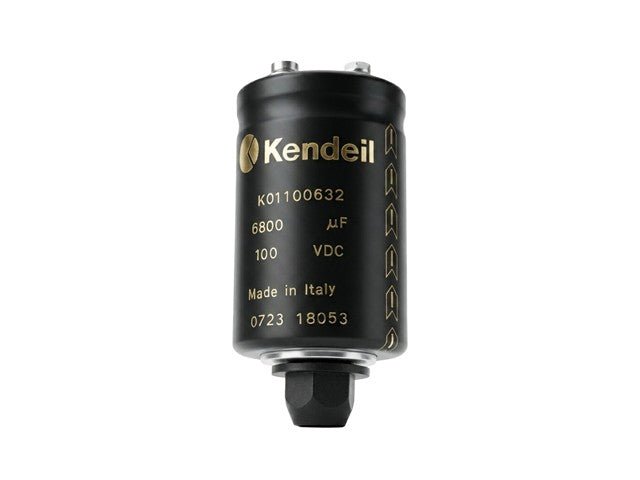

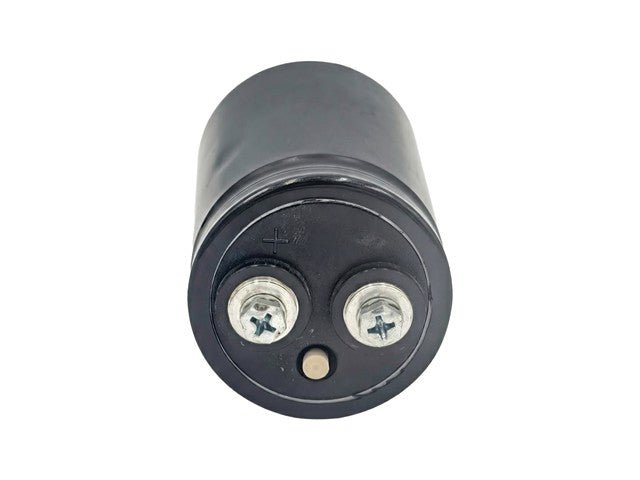

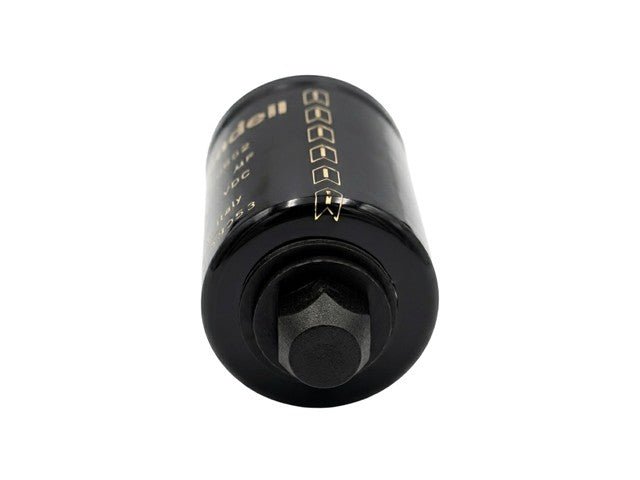

6800UF 100V K01 M12

Name: 6800UF 100V K01 M12 - Communica [Part No: 6800UF 100V K01 M12]
Brand: Kendeil
SKU: 6800UF 100V K01 M12
Price: 390 ZAR
Availability: InStock

SKU: 6800UF 100V K01 M12

BRAND: Kendeil

R 448.50_{(inc VAT)}
R 390.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Passive Components

Type: Capacitors

Category: Electrolytic Capacitors - Screw Terminal

Capacitor ELCO Screw Terminal STUD 51X79 11,1A RIPL

Capacitor ELCO Screw Terminal STUD

Specifications

Product Type: Aluminum Electrolytic Capacitor
Capacitance: 6800 µF
Rated Voltage: 100 V DC
Tolerance: ±20% (M)
Series: K01
Mounting Type: Screw Terminal
Terminal Size: M12
Polarity: Polarized
Operating Temperature: -40°C to +85°C
Maximum Dissipation Factor (tan δ): 0.12 (at 100 Hz)
Typical ESR: 15 mΩ (at 100 Hz)
Typical Impedance: 13 mΩ (at 10 kHz)
Maximum Leakage Current: 6.0 mA (after 5 minutes at 20°C)
Maximum Ripple Current: 14.1 A RMS (at 85°C)
Useful Life:
- 12,000 hours (≤100 V rating)
- 15,000 hours (higher voltage variants)
Housing Type: Aluminum Can
Mounting Style: Chassis Mount
Reference Standards:
- IEC 384-4
- CECC 30.300
- RoHS Compliant
Typical Applications:
- Power supplies
- Industrial automation equipment
- Motor drives
- UPS systems
- Inverters
- Audio amplifiers
- Energy storage and DC bus filtering

Additional Information

Device	Capacitor
Type	Capacitor \| ELCO \| Screw \| Terminal \| STUD

Upgrade your projects with the 6800UF 100V K01 M12 aluminum electrolytic capacitor, designed for high performance in power supplies and industrial automation. With a long lifespan of 12,000 hours and superior ripple current handling, it ensures reliable operation in demanding conditions. Experience enhanced efficiency and stability in your circuits with this RoHS compliant component.
