6AV6642-0BA01-1AX1

SKU: 6AV6642-0BA01-1AX1

BRAND: Siemens

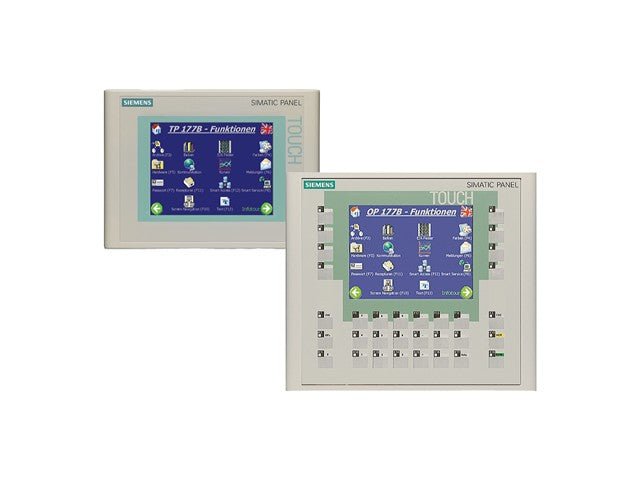

SIMATIC TP 177B 6" PN/DP STN 256 Color Display MPI/PROFIBUS DP Protocol RS485/RS422/USB Interface

SIMATIC Color Display

Specifications

  • Product Name: SIMATIC TP177B Operator Panel
  • Order Number: 6AV6642-0BA01-1AX1
  • Product Type: Industrial Operator Panel / HMI
  • Display Size: 5.7″ (approx. 145 mm)
  • Display Type: STN color display
  • Color Depth: 256 colors
  • Resolution: 320 × 240 pixels
  • Backlight MTBF: Approx. 50,000 hours at 25 °C
  • Touchscreen: Analog resistive touch
  • Control Elements: Touchscreen, system keys, numeric & alphanumeric input
  • Processor: ARM CPU (approx. 200 MHz)
  • User Memory: Approx. 2,048 KB for user data
  • Operating System: Embedded (Siemens HMI firmware)
  • Power Supply: 24 V DC (nominal), 20.4 – 28.8 V DC
  • Current Consumption: Approx. 0.24 A
  • Communication Interfaces: MPI / PROFIBUS-DP, RS-422, RS-485
  • Ethernet Interface: 10/100 Mbit/s Ethernet (RJ45)
  • USB Ports: USB for mouse/keyboard/barcode reader
  • Printer Interface: Yes
  • Memory Card Slot: MMC card slot
  • Mounting: Vertical panel mounting (inclination ≤ 35° without external ventilation)
  • Front Protection Rating: IP65
  • Rear Protection Rating: IP20
  • Operating Temperature: 0 °C to +50 °C
  • Storage Temperature: −20 °C to +60 °C
  • Humidity: Up to 90% non-condensing
  • Dimensions (approx.): 212 × 156 × 44 mm
  • Weight (approx.): ~0.8–1.1 kg
  • Typical Applications: Operator control & monitoring for PLC/automation systems
