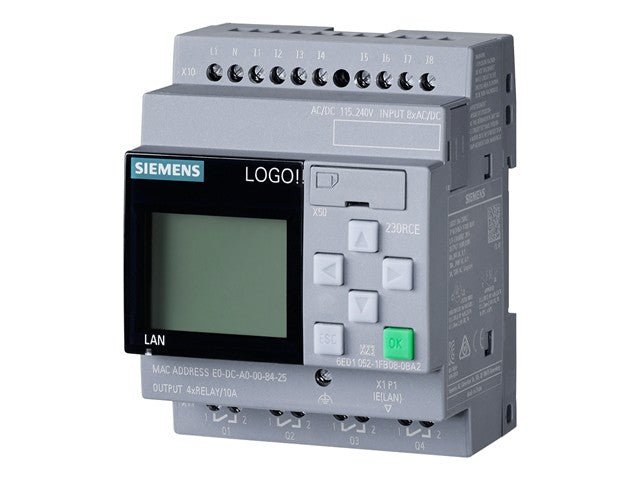

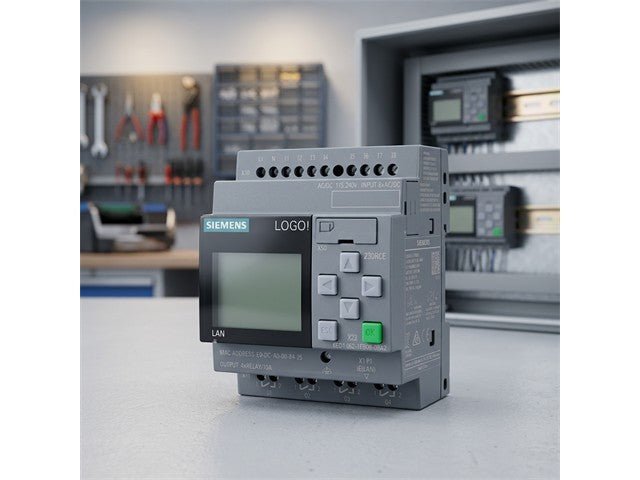

LOGO! 230RCE,logic module, display power supply / I/O: 115 V/230 V/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4
LOGO! 230RCE,logic module, display power supply

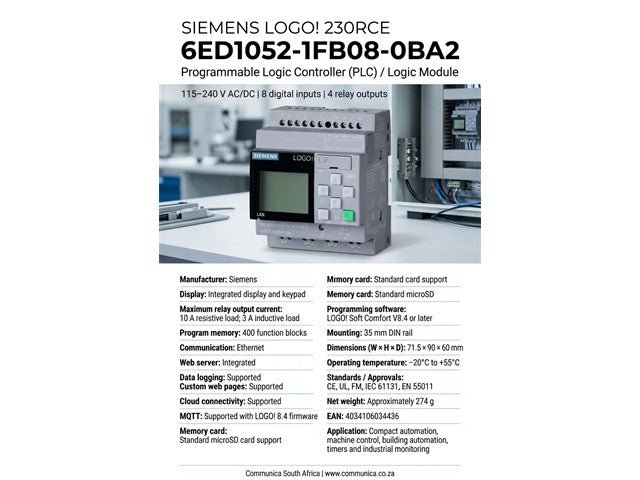

Specifications
- Manufacturer: Siemens
- Model / Part Number: 6ED1052-1FB08-0BA2
- Product Type: Programmable Logic Controller (PLC) / Logic Module
- Series: LOGO! 230RCE
- Display: Integrated display and keypad
- Supply Voltage: 115–240 V AC/DC
- Number of Digital Inputs: 8
- Number of Digital Outputs: 4 relay outputs
- Maximum Relay Output Current: 10 A resistive load; 3 A inductive load
- Program Memory: 400 function blocks
- Communication Interface: Ethernet
- Web Server: Integrated
- Data Logging: Supported
- Custom Web Pages: Supported
- Cloud Connectivity: Supported
- MQTT: Supported with LOGO! 8.4 firmware
- Memory Card: Standard microSD card support
- Programming Software: LOGO! Soft Comfort V8.4 or later
- Mounting Type: 35 mm DIN rail
- Width: 71.5 mm
- Height: 90 mm
- Depth: 60 mm
- Operating Temperature: -20°C to +55°C
- Standards / Approvals: CE, UL, FM, IEC 61131, EN 55011
- Net Weight: Approximately 274 g
- EAN: 4034106034436
- Application: Compact automation, machine control, building automation, timers and industrial monitoring.
Additional Information
| Device |
display power supply |
| Type |
LOGO! | 230RCE | logic | module | display | power | supply |
Elevate your automation projects with the Siemens LOGO! 230RCE logic module (6ED1052-1FB08-0BA2). Featuring 8 digital inputs, 4 relay outputs, and integrated web server capabilities, this versatile PLC ensures seamless control and monitoring for building and industrial applications. With expandable memory and cloud connectivity, streamline your processes and gain real-time insights effortlessly.
