6ES7136-6DB01-0CA0

Name: 6ES7136-6DB01-0CA0 - Communica [Part No: 6ES7136-6DB01-0CA0]
Brand: Siemens
SKU: 6ES7136-6DB01-0CA0
Price: 6593 ZAR
Availability: OutOfStock

SKU: 6ES7136-6DB01-0CA0

BRAND: Siemens

Sold Out
R 7,581.95_{(inc VAT)}
R 6,593.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: PLC & DCS

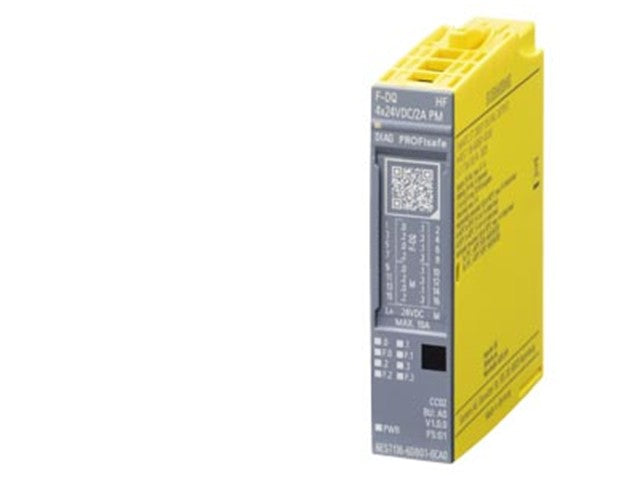

SIMATIC DP, Electronic Module ET 200SP, F-DQ 4x24VDC/2A PM HF, 15 mm width, up to PL e (ISO 13849), up to SIL 3 (IEC 61508) "

SIMATIC DP, Electronic Module

Specifications

Product Type: Fail-Safe Digital Output Module
Module Designation: F-DQ 4x24VDC/2A PM HF
Number of Outputs: 4 Digital Outputs
Output Type: PNP (Sourcing / PM Switching)
Rated Output Voltage: 24 V DC
Supply Voltage Range: 19.2–28.8 V DC
Rated Output Current: 2 A per channel
Maximum Resistive Load: 2 A per output
Lamp Load: Up to 10 W
Short-Circuit Protection: Yes
Overload Protection: Yes
Open-Circuit Detection: Yes
Reverse Polarity Protection: Yes
Functional Safety:
- Up to SIL 3 (IEC 61508)
- Up to PL e (ISO 13849)
- PROFIsafe compatible
Module Width: 15 mm
BaseUnit Compatibility: BU Type A0
Firmware Update: Supported
Engineering Software:
- STEP 7 TIA Portal V20 with HSP / V21 or later
PROFINET GSD Version: GSDML V2.45
Power Consumption:
- 30 mA (without load)
- Typical power loss: 3 W
Mounting: DIN Rail (ET 200SP system)
Diagnostics:
- Channel status LEDs
- Supply voltage LED
- Diagnostic LED
- I&M data (I&M0 to I&M3)
Operating Temperature: Industrial operating range
Typical Applications:
- Emergency stop circuits
- Safety interlocks
- Machine safety
- Process automation
- Industrial control systems
- Safety-related switching of actuators and contactors

Downloads

Datasheet

Additional Information

Device	Module
Type	SIMATIC \| DP \| Electronic \| Module
