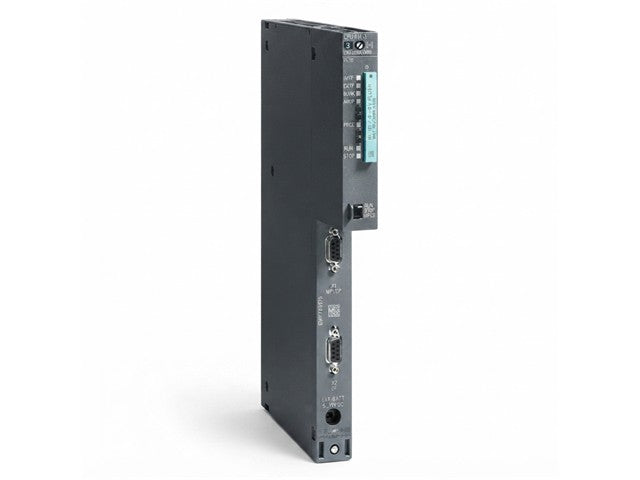

SIMATIC S7-400, CPU 414-2 Central Processing Unit With: Work Memory 512 KB, (256 KB code, 256 KB data), 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP
SIMATIC S7-400, CPU
Specifications
- Product Type: CPU 414-2 Central Processing Unit (PLC CPU)
- Firmware Version: V4.0
- Working Memory:
- 512 KB Total
- 256 KB Program Memory
- 256 KB Data Memory
- Load Memory:
- 256 KB Integrated RAM
- Expandable with Memory Card
- Up to 64 MB FLASH (FEPROM)
- Up to 64 MB RAM
- Supply Voltage: 24 V DC
- Backplane Bus Current:
- Typical: 1 A (5 V DC)
- Maximum: 1.2 A (5 V DC)
- Power Consumption (Typical): 4.5 W
- Communication Interfaces:
- 1 × MPI/PROFIBUS DP Interface (12 Mbit/s)
- 1 × PROFIBUS DP Interface (12 Mbit/s)
- Counters: 2,048
- Timers: 2,048
- Marker Memory: 8 KB
- Maximum Data Blocks: 4,095
- Maximum Block Size: 64 KB
- Local Data: Up to 16 KB
- Backup:
- Battery-backed memory
- External backup voltage supported
- Mounting: SIMATIC S7-400 Rack
- Dimensions (W × H × D): 25 × 290 × 219 mm
- Weight: Approximately 720 g
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +70°C
- Typical Applications:
- Industrial automation
- Process control
- Manufacturing systems
- PLC control systems
- Machine automation
- Distributed I/O with PROFIBUS DP
- High-performance industrial control applications
Downloads
Additional Information
| Device |
CPU |
| Type |
SIMATIC | S7-400 | CPU |
Enhance your industrial automation with the SIMATIC S7-400 CPU 414-2. Featuring 512 KB of work memory and dual 12 Mbit/s interfaces, this high-performance central processing unit ensures efficient process control and machine automation. With expandable memory and robust reliability, it's the ideal choice for demanding manufacturing systems. Upgrade your control systems today!
