6ES7972 - 0AB01 - 0XA0 - Industrial Automation - 4025515069256

6ES7972-0AB01-0XA0

SKU: 6ES7972-0AB01-0XA0

BRAND: Siemens



R 17,758.30 (inc VAT)
R 15,442.00 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

Collections:

Type: Industrial Automation

Category: PROFIBUS DP Diagnostic Repeater

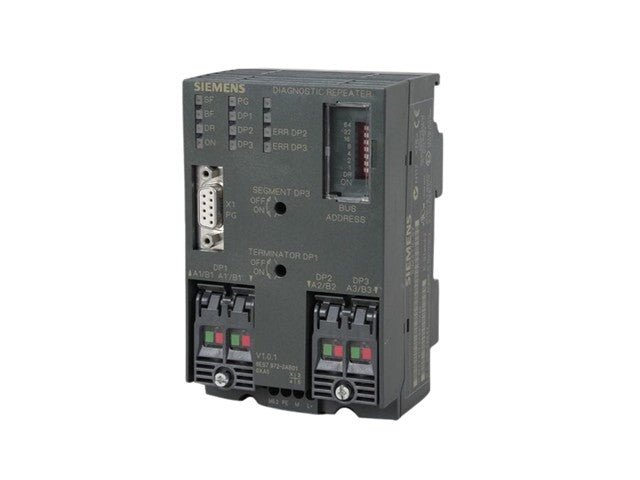

SIMATIC S7, Diagnosis-Repeater for Profibus DP - Standard Slave TO 12MBIT/S

Specifications

  • Supply Voltage
    • Rated value (DC): 24 V
    • Permissible range, lower limit (DC): 20.4 V
    • Permissible range, upper limit (DC): 28.8 V
  • Power Loss
    • Typical power loss: 4 W
  • Interfaces
    • PROFIBUS DP
      • Transmission rate: 9.6 kbit/s to 12 Mbit/s
      • Maximum transmission rate: 12 Mbit/s
  • Degree and Class of Protection
    • IP degree of protection: IP20
  • Ambient Conditions
    • Operating temperature:
      • Minimum: 0 °C
      • Maximum: 60 °C
    • Storage/transport temperature:
      • Minimum: -40 °C
      • Maximum: 70 °C
    • Relative humidity during operation:
      • Maximum: 95% at 25 °C
  • Connection Method
    • Electrical connection for supply voltage: Terminal module
    • Electrical connection for PROFIBUS cables: FastConnect insulation displacement (up to 10 clamping cycles)
  • Dimensions
    • Width: 80 mm
    • Height: 125 mm
    • Depth: 67.5 mm
  • Weight
    • Approximate weight: 300 g

Downloads

Enhance your automation setup with the 6ES7972-0AB01-0XA0 SIMATIC S7 Diagnosis-Repeater, designed for seamless Profibus DP communication up to 12 Mbit/s. This reliable device operates within a wide temperature range and ensures robust performance with minimal power loss. Boost system efficiency and maintain optimal connectivity effortlessly.
