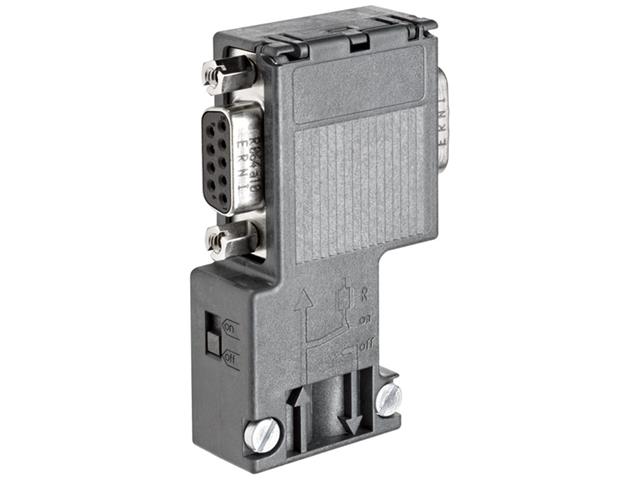

6ES7972-0BB12-0XA0

Name: 6ES7972-0BB12-0XA0 - Communica [Part No: 6ES7972-0BB12-0XA0]
Brand: Siemens
SKU: 6ES7972-0BB12-0XA0
Price: 963 ZAR
Availability: InStock

SKU: 6ES7972-0BB12-0XA0

BRAND: Siemens

In Stock
R 1,107.45_{(inc VAT)}
R 963.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Profibus DP Interface

SIMATIC DP, Connection Plug for PROFIBUS up to 12 Mbit/s 90° Cable Outlet

SIMATIC DP, Connection Plug

Specifications

Suitability : for use for connecting PROFIBUS stations to the PROFIBUS bus cable
Transfer rate
Transfer rate / with PROFIBUS DP : 9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
- for PROFIBUS cables 2
- for network components or terminal equipment 1
Type of electrical connection
- for PROFIBUS cables Screw
- for network components or terminal equipment 9-pin sub D connector
Type of electrical connection / FastConnect : No
Techanical data
Design of terminating : Resistor Resistor combination integrated and connectable via slide switch
Material / of the enclosure : plastic
Locking mechanism design : Screwed joint
Design, dimensions and weights
Type of cable outlet : 90 degree cable outlet
width : 15.8 mm
height : 64 mm
depth : 35.6 mm
net weight 45 g
Ambient conditions
Ambient temperature
- during operation -25 ... +60 °C
- during storage -40 ... +70 °C
- during transport -40 ... +70 °C
protection class IP : IP20
Product features, product functions, product components / general
product feature
- silicon-free : Yes
Product component
- PG connection socket : Yes
- strain relief : Yes
Standards, specifications, approvals
Certificate of suitability
- RoHS conformity : Yes
- UL approval : Yes

Downloads

Datasheet - 6ES7972-0BB12-0XA0

Additional Information

Device	Connection Plug
Type	SIMATIC DP
