6FX8002 - 5CN06 - 1CF0 - Industrial Automation - 804766321320

6FX8002-5CN06-1CF0

SKU: 6FX8002-5CN06-1CF0

BRAND: Siemens


Sold Out

Collections:

Type: Industrial Automation

Category: Industrial Ethernet Cables

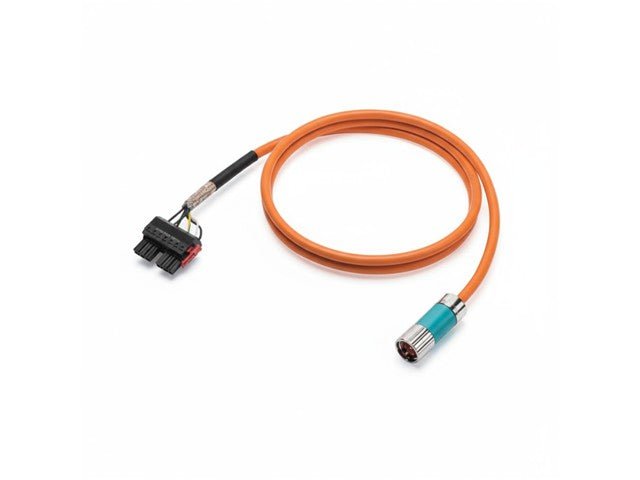

Power Cable Pre-assembled

Power Cable Pre-assembled

Specifications

  • Product Type: Power cable pre-assembled, MOTION-CONNECT 800PLUS (Trailing Type)
  • Application: For SINAMICS S120 Booksize Motor Modules C-/D-Types to motors like SIMOTICS S-1FT2/S-1FK2/S-1FK7/S-1FG1/M-1PH8.
  • Cable Designation: TYPE 6FX8002-5CN06 4×1.5 C
  • Length: 25.0 m (meters)
  • Number of Cores x Cross-Section: 4×1.5 mm2 (with C=Screened)
  • Rated Voltage: 600 V/1000 V (according to EN 50395)
  • Test Voltage (Power Conductors): 4.0 kV (rms)
  • Engine Side Connector: SPEED-CONNECT Connector, Size 1 / M23
  • Converter Side Connector: Connector for SINAMICS S120 Booksize Motor Module C-/D-Types
  • Maximum Cable Outer Diameter: 9.5 mm
  • Cable Sheath Material : PUR (Polyurethane)
  • Sheath Color: DESINA color Orange (RAL 2003)
  • Bending Radius (Fixed Installation): 38.0 mm
  • Bending Radius (Flexible/Carrier): 75.0 mm
  • Maximum Traversing Velocity: 300 m/min
  • Maximum Acceleration: 50 m/s$^2$ (horizontal)
  • Travel Path (Cable Carrier): 50 m
  • Number of Bends: 10,000,000
  • Ambient Temperature (Moving Cable): −20 to +60 °C
  • Flammability Standard: EN 60332-1-1 to 1-3
  • Compliance/Approvals: UL/CSA, DESINA, CFC/Halogen/Silicone-free, Oil resistant

Downloads

Additional Information

Device Cable
Type Power | Cable | Pre-assembled
Upgrade your industrial setup with the 6FX8002-5CN06-1CF0 pre-assembled power cable. Designed for SINAMICS S120 motor modules, this durable 25m cable ensures reliable performance with a maximum acceleration of 50 m/s². Its robust PUR sheath is oil-resistant and built to withstand extreme temperatures, making it ideal for demanding environments.
