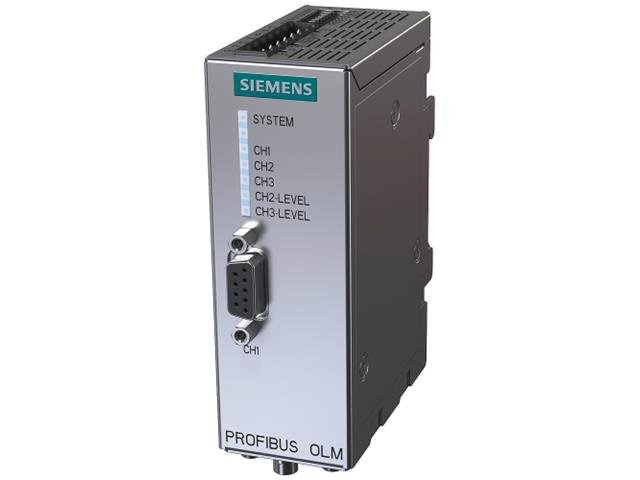

transfer rate
|
|
transfer rate / with PROFIBUS
|
9.6 kbit/s ... 12 Mbit/s
|
|
transfer rate / with PROFIBUS PA
|
45.45 kbit/s
|
|
interfaces
|
|
number of electrical/optical connections / for network components or terminal equipment / maximum
|
3
|
|
number of electrical connections
|
|
|
● for network components or terminal equipment
|
1
|
|
● for measuring device
|
1
|
|
● for signalling contact
|
1
|
|
● for power supply
|
1
|
|
● for redundant voltage supply
|
1
|
|
type of electrical connection
|
|
|
● for network components or terminal equipment
|
9-pin Sub-D socket
|
|
● for measuring device
|
2-pole terminal block
|
|
● for power supply and signalling contact
|
5-pole terminal block
|
|
number of optical interfaces / for fibre optic cable
|
2
|
|
design of the optical interface / for fibre optic cable
|
BFOC port
|
|
optical data
|
|
attenuation factor / of the FOC transmission link
|
|
|
● for glass FOC with 50/125 µm / at 3 dB/km / maximum
|
10 dB
|
|
● for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum
|
12 dB
|
|
propagation delay [bit]
|
6.5 bit
|
|
connectable optical power relative to 1 mW
|
|
|
● for glass FOC with 50/125 µm / at 3 dB/km
|
-16 dB
|
|
● for glass FOC with 62.5/125 µm / at 3.5 dB/km
|
-13 dB
|
|
optical sensitivity relating to 1 mW
|
|
|
● for glass FOC with 50/125 µm / at 3 dB/km
|
-28 dB
|
|
● for glass FOC with 62.5/125 µm / at 3.5 dB/km
|
-28 dB
|
|
wavelength / of the optical interface / note
|
860 nm, multimode
|
|
wire length
|
|
|
● for glass FOC with 50/125 µm / at 3 dB/km / maximum
|
3 km
|
|
● for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum
|
3 km
|
|
signal inputs/outputs
|
|
operating voltage / of the signalling contacts / at DC / rated value
|
24 V
|
|
operational current / of the signalling contacts / at DC / maximum
|
0.1 A
|
|
supply voltage, current consumption, power loss
|
|
type of voltage / of the supply voltage
|
DC
|
|
supply voltage / at DC / rated value
|
24 V
|
|
supply voltage / at DC
|
18.8 ... 28.8 V
|
|
product component / fusing at power supply input
|
Yes
|
|
consumed current / at DC / at 24 V / maximum
|
0.2 A
|
|
ambient conditions
|
|
ambient temperature
|
|
|
● during operation
|
0 ... 60 °C
|
|
● during storage
|
-40 ... +70 °C
|
|
● during transport
|
-40 ... +70 °C
|
|
relative humidity
|
|
|
● at 25 °C / without condensation / during operation / maximum
|
95 %
|
|
protection class IP
|
IP40
|
|
design, dimensions and weights
|
|
design
|
compact
|
|
width
|
39.5 mm
|
|
height
|
112 mm
|
|
depth
|
74.5 mm
|
|
net weight
|
340 g
|
|
fastening method
|
|
|
● 35 mm DIN-rail mounting
|
Yes
|
|
● wall mounting
|
Yes
|
|
product functions / redundancy
|
|
product function / ring redundancy
|
Yes
|
|
standards, specifications, approvals
|
|
standard
|
|
|
● for safety / from CSA and UL
|
UL 60950-1, CSA C22.2 Nr. 60950-1
|
|
● for emitted interference
|
EN 61000-6-4 (Class A)
|
|
● for interference immunity
|
EN 61000-6-2
|
|
certificate of suitability
|
EN 61000-6-2, EN 61000-6-4
|
|
● CE marking
|
Yes
|
|
● C-Tick
|
Yes
|
|
Marine classification association
|
|
|
● according to IEC 81346-2:2019
|
KGC
|
|
product function / is supported / identification link
|
Yes; acc. to IEC 61406-1:2022
|
|
standards, specifications, approvals / hazardous environments
|
|
certificate of suitability / CCC / for hazardous zone according to GB standard
|
No
|
|
standards, specifications, approvals / Environmental Product Declaration
|
|
Environmental Product Declaration
|
Yes
|
|
global warming potential [CO2 eq]
|
|
|
● total
|
165.41 kg
|
|
● during manufacturing
|
15.09 kg
|
|
● during operation
|
150.26 kg
|
|
● after end of life
|
0.06 kg
|
