6GK1901-1BB10-2AB0

SKU: 6GK1901-1BB10-2AB0

BRAND: Siemens

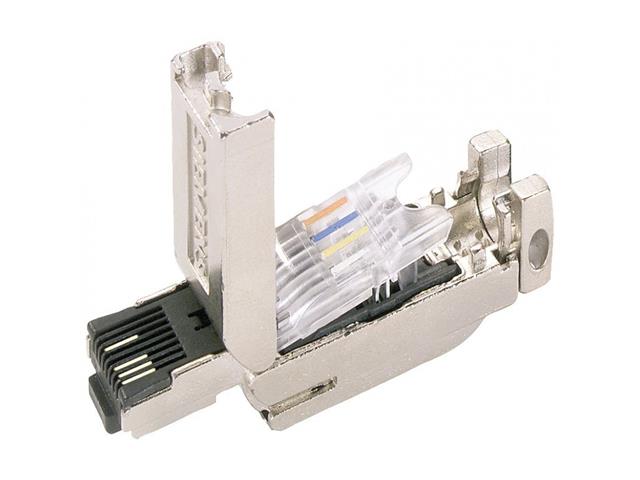

Industrial Ethernet FastConnect RJ45 Plug 180 2x 2, RJ45 Plug-in Connector (10/100 Mbit/s) with Rugged Metal Enclosure and FC Connection System, for IE FC Cable 2x 2; 180°

Industrial Ethernet FastConnect RJ45 Plug

Overview

From Siemens, this range of RJ45 plugs feature the FastConnect system. With FastConnect for industrial Ethernet, structured cabling from the office environment becomes industry compatible for installation in the production hall. RJ45 cabling technology is used as standard and is ideal for installation of RJ45 connectors in the field area with 4-core (2 x 2) industrial Ethernet FC cables. They have a reliable shield attachment and the strain relief is integrated. FastConnect RJ45 plugs allow for the implementation of direct device connections over distances of up to 100 m with industrial Ethernet FC installation cable with patching. All models are highly reliable and excellent quality.

Feature(s)

  • Error minimising connection technique
  • Industry compatible design
  • Good EMC shielding and deflection
  • Integrated strain relief
  • Compatible with EN 50173 / ISO IEC 11801



Specifications

  • Gender : Male
  • Mounting Type : Cable Mount
  • Orientation : Straight
  • IP Rating : IP20
  • Length : 16mm
  • Width : 13.7mm
  • Depth : 55mm

Additional Information

Device RJ45 Plug
Type Industrial | Ethernet | FastConnect
