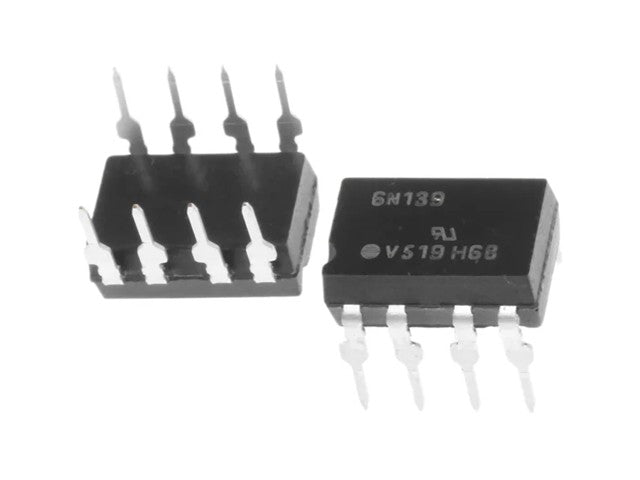

6N139

SKU: 6N139

BRAND: Communica


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Opto Coupler Single CH High Gain 8P DIL

Opto Coupler Photovoltaic Output

Specifications

Mount Type Through Hole
Maximum Forward Voltage 1.7V
Packaging Tape & Reel
Number of Channels 1
Number of Pins 8
Package Type DIP
Input Current Type DC
Maximum Input Current 25mA
Isolation Voltage 5300Vrms
Minimum Operating Temperature -55°C
Logic Output Yes
Maximum Operating Temperature 100°C
Maximum Current Transfer Ratio 2000%
Minimum Current Transfer Ratio 300%
Standards/Approvals UL1577, IEC 60747-5-2, DIN EN 60747-5-5
Series 6N139
Automotive Standard No

Additional Information

Device Transistor
Experience superior signal isolation with the 6N139 Opto Coupler. Designed for high gain and efficiency, this single-channel device offers a remarkable current transfer ratio of up to 2000%. With robust isolation voltage and a wide temperature range, it’s perfect for reliable performance in demanding applications. Upgrade your projects with this high-quality, versatile component today!
