6SL3100-0BE25-5AB0
SKU: 6SL3100-0BE25-5AB0
BRAND: Siemens
Sold Out
R 50,467.75 (inc VAT) R 43,885.00 (ex VAT)

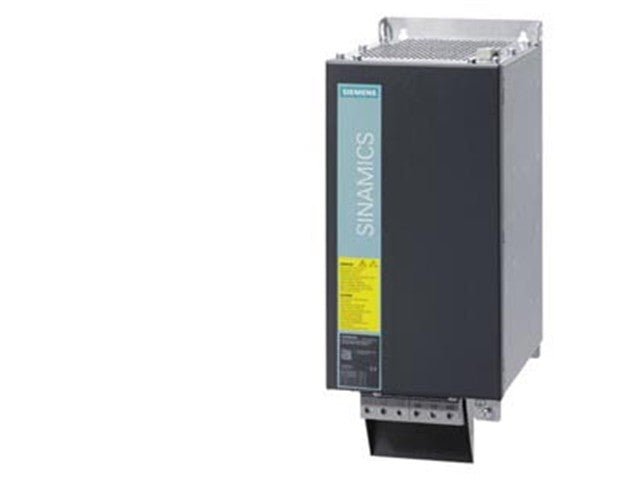

Sinamics S120 Active Interface Module For 55kw Active LINE Module Input: 3AC 380-480v, 50/60hz
Sinamics S120 Active Interface Module
Specifications
Manufacturer: Siemens
Model / Part Number: 6SL3100-0BE25-5AB0
Product Type: Active Interface Module
Product Family: SINAMICS S120
Compatible Active Line Module: 55 kW
Input Voltage: 380–480 V AC
Number of Phases: 3-phase AC
Frequency: 50/60 Hz
Rated Input Current: 88 A
24 V DC Electronics Supply Current: Maximum 0.60 A
Internal Resistance: 1,440 Ω ±10%
Power Loss: 380 W
Cooling Type: Internal air cooling
Cooling Airflow: 0.083 m³/s
Sound Pressure Level: 66 dB(A)
Protection Rating: IP20 / UL Open Type
Construction: Booksize
Line-Side Connection: Screw-type terminals
Maximum Conductor Cross-Section: 50 mm²
Protective Earth Connection: M6 screw
Dimensions (W × H × D): 200 × 380 × 270 mm
Net Weight: Approximately 23.2 kg
Standards / Approvals: cURus
EAN: 4042948662953
Country of Origin: Germany
Application: Industrial drive systems, line-side interfacing and power conversion in Siemens SINAMICS S120 drive systems.
Downloads
Additional Information
Device
Module
Type
Sinamics | S120 | Active | Interface | Module
Enhance your industrial drive systems with the Siemens 6SL3100-0BE25-5AB0 Sinamics S120 Active Interface Module. Designed for seamless line-side interfacing and power conversion, this robust module supports 55 kW at 380-480V and ensures optimal performance with low power loss. Elevate your efficiency and reliability in demanding applications with this high-quality component.
