7001906103

Name: 7001906103 - Communica [Part No: 7001906103]
Brand: Hummel
SKU: 7001906103
Price: 226.80 ZAR
Availability: InStock

SKU: 7001906103

BRAND: Hummel

R 260.82_{(inc VAT)}
R 226.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Solder Insert - 6 Pole - 6 x 2mm Contacts - 20A @ 630VAC Max.

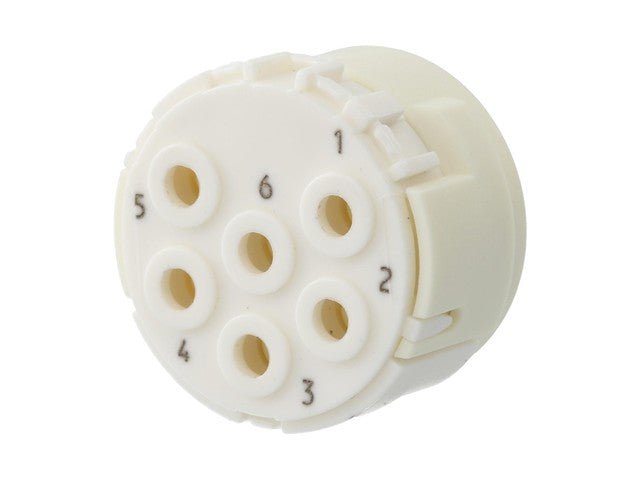

M23 Signal Male Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Solder connection
Number of poles:	6-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	clockwise (standard)

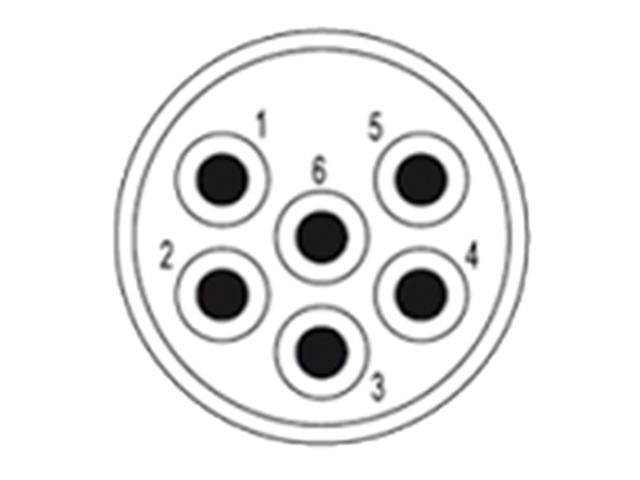

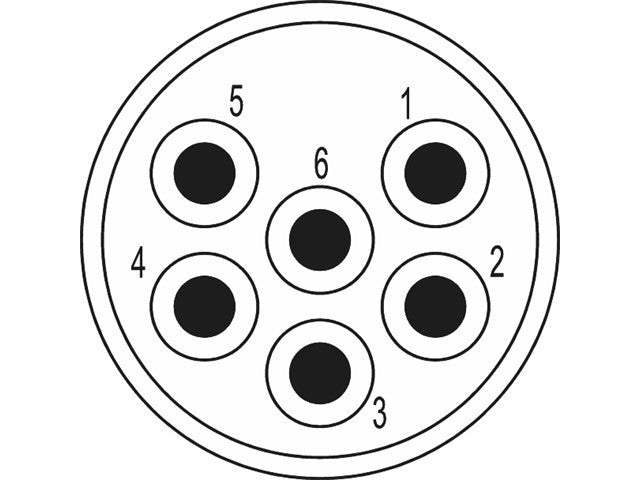

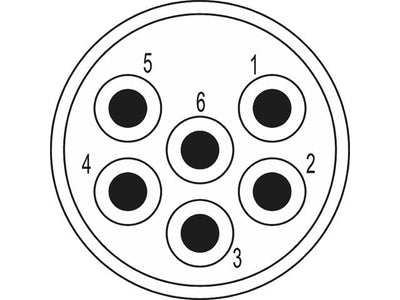

Labelling:	1 - 6
Rated voltage:	Voltage: 300V
Rated current:	Power: 20A
Pollution level:	3
Cross-section:	mm²: 0.75 mm²-2.5 mm²

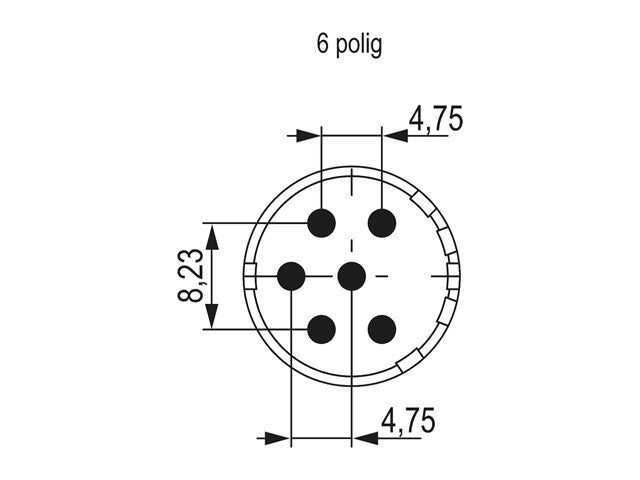

Contact diameter:	2.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Insert

Elevate your connectivity with our M23 Single Circular Connector, featuring a robust male solder insert with 6 poles for reliable performance. Rated for 20A at 630VAC, this 6 x 2mm contact connector ensures secure and efficient electrical connections, perfect for industrial applications. Trust in superior quality and durability for your projects.
