7001906104

Name: 7001906104 - Communica [Part No: 7001906104]
Brand: Hummel
SKU: 7001906104
Price: 291.50 ZAR
Availability: InStock

SKU: 7001906104

BRAND: Hummel

R 335.23_{(inc VAT)}
R 291.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

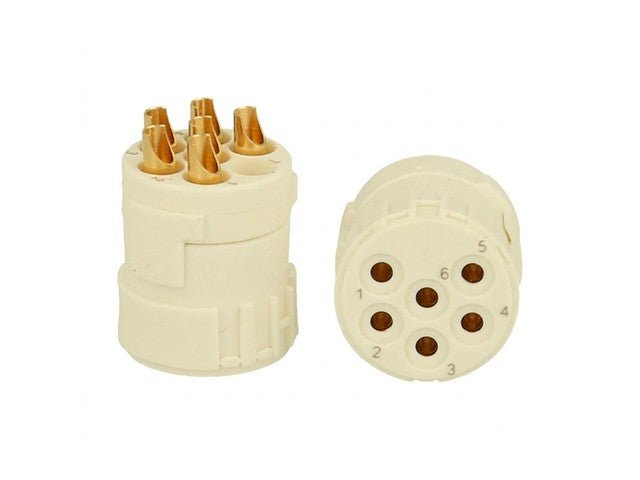

Circular Connector M23 Signal Female Solder Insert - 6 Pole - 6 x 2mm Contacts - 20A @ 630VAC Max.

M23 Signal Female Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Solder connection
Number of poles:	6-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	left-hand rotation (standard)

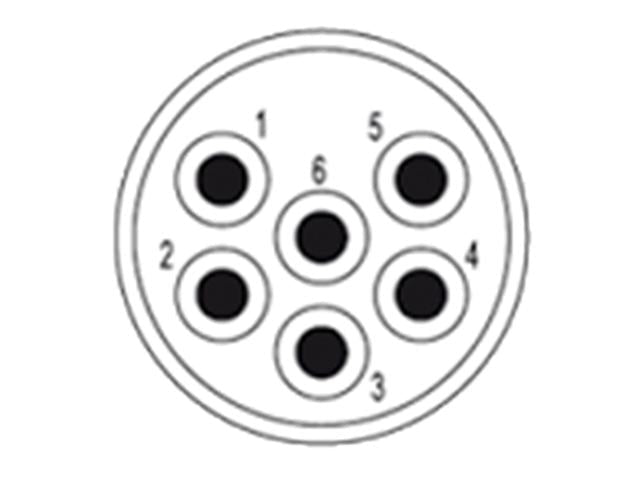

Labelling:	1 - 6
Rated voltage:	Voltage: 300V
Rated current:	Power: 20A
Pollution level:	3
Cross-section:	mm²: 0.75 mm²-2.5 mm²
Contact diameter:	2.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Insert

Upgrade your connectivity with the M23 Single Circular Connector. This durable female solder insert features 6 poles and 20A @ 630VAC max, ensuring reliable performance for your electrical projects. Perfect for robust applications, it offers secure connections and ease of installation. Enhance your setup with this high-quality connector today!
