7001907103

Name: 7001907103 - Communica [Part No: 7001907103]
Brand: Hummel
SKU: 7001907103
Price: 226.80 ZAR
Availability: InStock

SKU: 7001907103

BRAND: Hummel

R 260.82_{(inc VAT)}
R 226.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

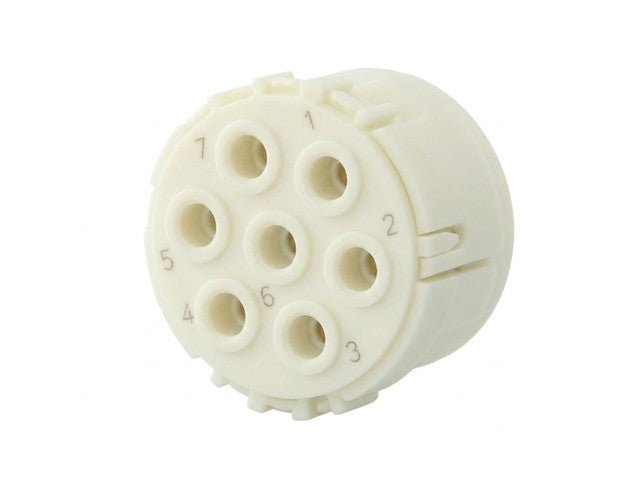

Circualr Connector M23 Signal Male Solder Insert - 7 Pole for 7 x 2mm Contacts - 20A @ 630VAC Max.

M23 Signal Male Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Solder connection

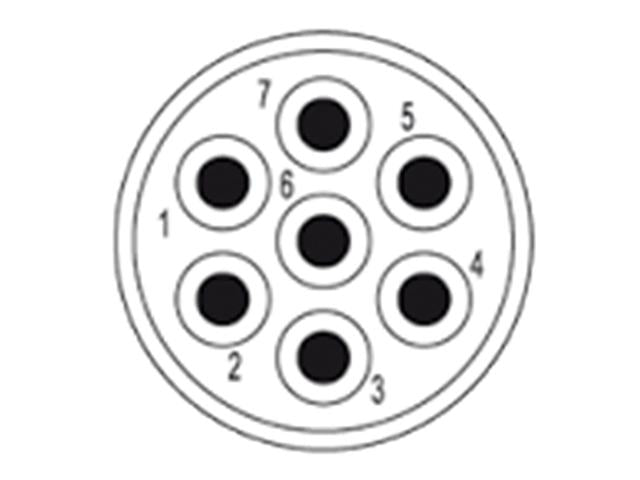

Number of poles:	7-pole
Coding:	N,S,H,X,Y
Coding direction:	clockwise (standard)
Labelling:	1 - 7
Rated voltage:	Voltage: 300V
Rated current:	Power: 20A
Pollution level:	3
Cross-section:	mm²: 0.75 mm²-2.5 mm²
Contact diameter:	2.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Solder Insert

Discover the reliable M23 Single Circular Connector, designed for seamless connectivity with 7 poles for 7 x 2mm contacts. Rated for 20A at 630VAC, this durable male solder insert connector ensures optimal performance and safety in your electrical applications. Upgrade your projects with high-quality connectivity today!
