7001907104

Name: 7001907104 - Communica [Part No: 7001907104]
Brand: Hummel
SKU: 7001907104
Price: 280.67 ZAR
Availability: InStock

SKU: 7001907104

BRAND: Hummel

R 322.77_{(inc VAT)}
R 280.67_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

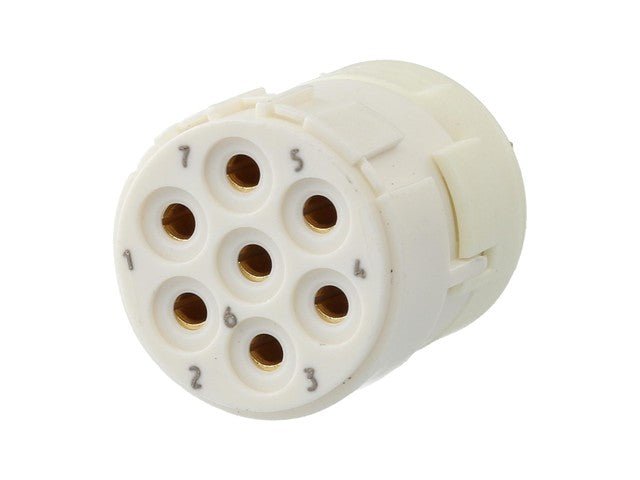

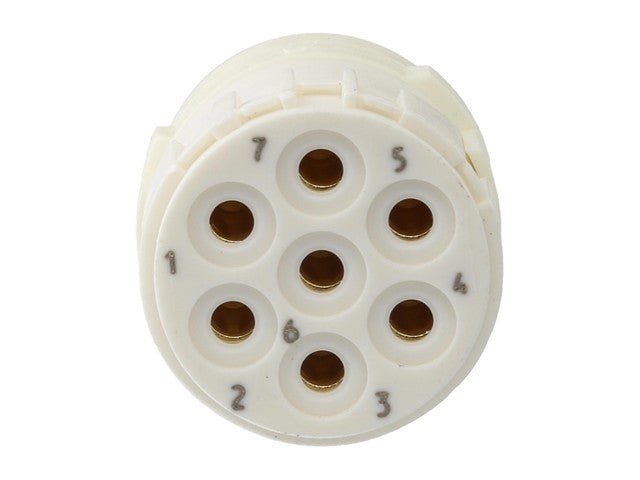

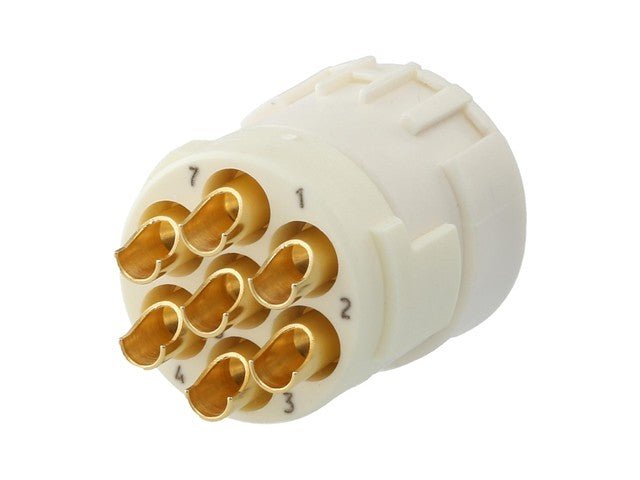

Circular Connector M23 Signal Female Solder Insert, 7 Pole for 7 x 2mm Contacts - 20A @ 630VAC Max.

M23 Signal Female Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Solder connection
Number of poles:	7-pole
Coding:	N,S,H,X,Y
Coding direction:	left-hand rotation (standard)

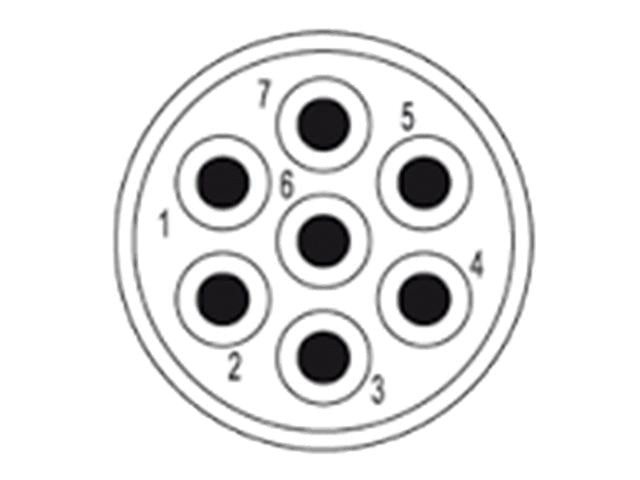

Labelling:	1 - 7
Rated voltage:	Voltage: 300V
Rated current:	Power: 20A
Pollution level:	3
Cross-section:	mm²: 0.75 mm²-2.5 mm²
Contact diameter:	2.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device	Solder Insert
Type	M23 \| Single \| Circular

Upgrade your electrical connections with the M23 Single Circular Connector. Designed for 7 x 2mm contacts, this durable female solder insert ensures reliable performance with a 20A capacity at 630VAC max. Ideal for industrial applications, it guarantees secure connections and longevity, making it a must-have for your projects.
