7001912103

Name: 7001912103 - Communica [Part No: 7001912103]
Brand: Hummel
SKU: 7001912103
Price: 255.15 ZAR
Availability: InStock

SKU: 7001912103

BRAND: Hummel

R 293.42_{(inc VAT)}
R 255.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Solder Insert come with- 12 Pole - 12 x 1mm Contacts - 8/20A @ 500VAC Max.

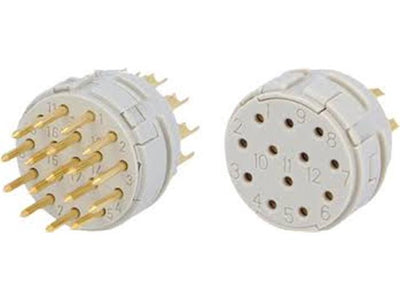

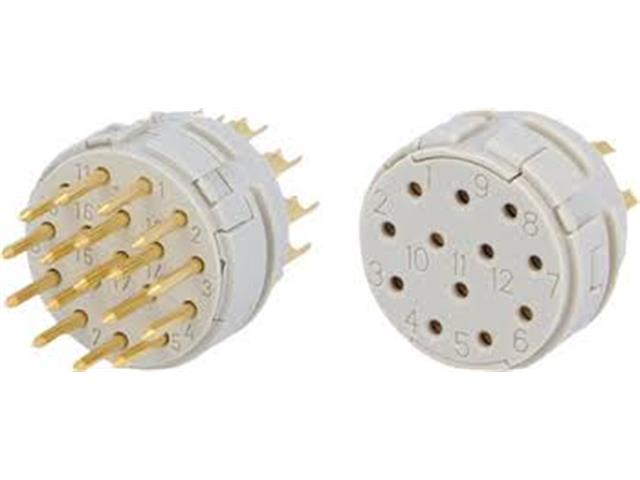

M23 Signal Male Solder Insert

Specifications

ype:	Solder contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Solder connection
Number of poles:	12-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	clockwise (standard)
Labelling:	1 - 12
Rated voltage:	Voltage: 200V
Rated current:	Power: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm²
Contact diameter:	1.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Solder Insert

Upgrade your connectivity with the M23 Signal Circular Connector. Designed for reliability, this 12-pole male solder insert supports up to 20A at 500VAC, ensuring optimal performance for your devices. Perfect for industrial applications, it guarantees secure and efficient signal transmission.
