SKU: 7001912113

BRAND: Hummel

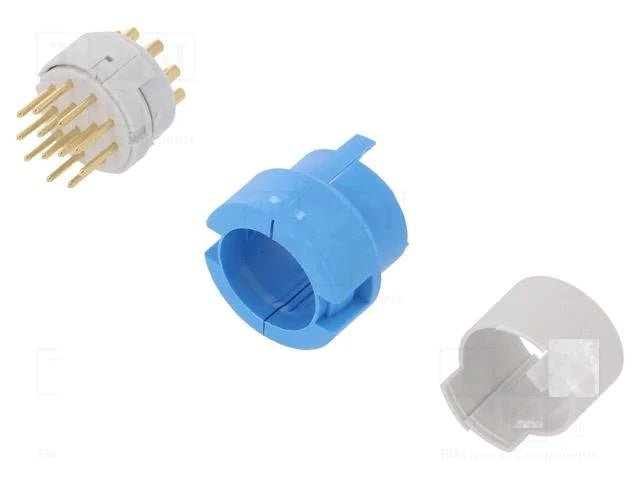

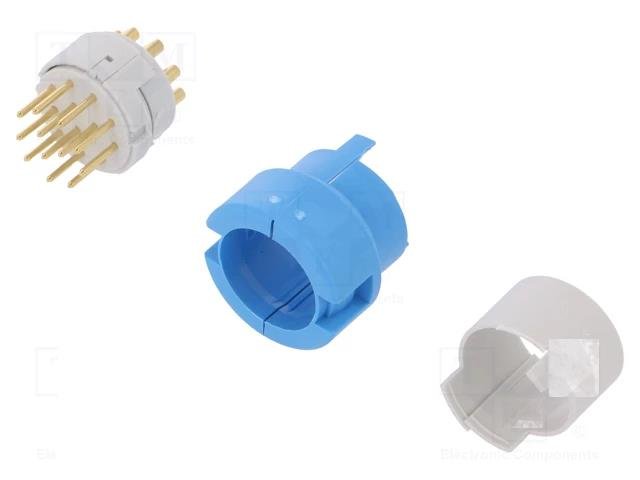

Circular Connector M23 Signle. Male Solder Insert come with - 12 Pole (PE on Pos 9)- 12 x 1mm Contacts - 8/20A @ 500VAC Max.

M23 Signle Circular Connector


Characteristic of connection Solder
Number of poles 12
Pole picture 11 + PE (Pos.9)
Coding Pos. 9 PE
  Pinout clockwise
Insert Pin
Color contact insert white
Material insulating body PA 6,
Number of contacts signal 12
Contact-Ø signal 1 mm
Nominal current signal 8 A
Nominal voltage at degree of pollution 3 signal 200 V~
Test voltage signal 1500 V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Degree of Protection 3
Flammability V-0 (UL 94)
