7001912114

Name: 7001912114 - Communica [Part No: 7001912114]
Brand: Hummel
SKU: 7001912114
Price: 227.20 ZAR
Availability: InStock

SKU: 7001912114

BRAND: Hummel

R 261.28_{(inc VAT)}
R 227.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

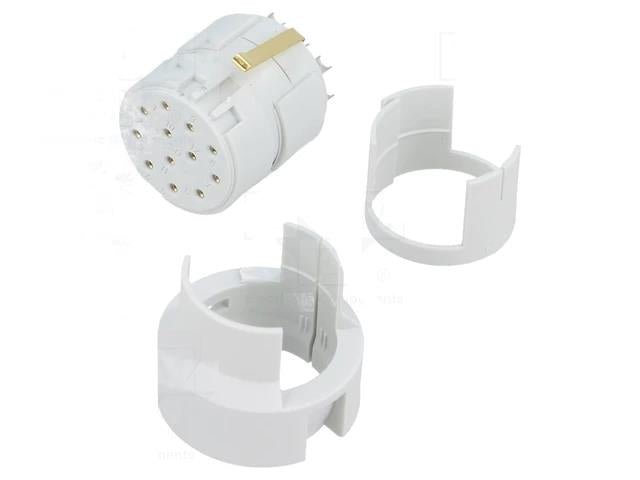

Circular Connector M23 Signal Female Solder Insert come with - 12 Pole (PE on Pos 9)- 12 x 1mm CONTACTS - 8/20A @ 500VAC MAX.

M23 Signal Female Solder Insert

Specifications

Characteristic of connection	Solder
Number of poles	12

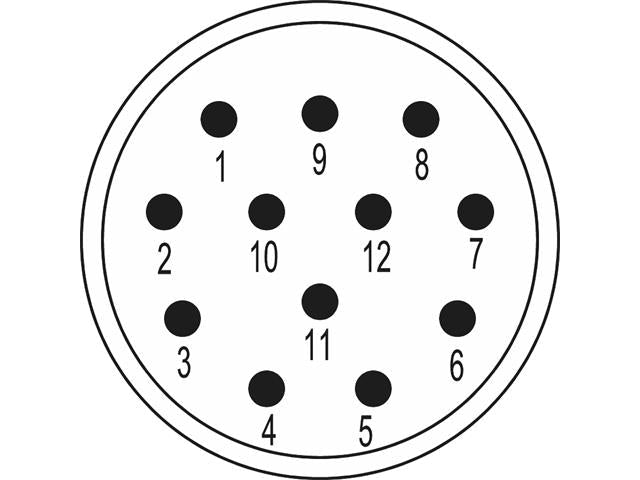

Pole picture	11 + PE (Pos.9)
Coding	Pos. 9 PE
	Pinout clockwise
Insert	Socket
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	12

Contact-Ø signal	1 mm
Nominal current signal	8 A
Nominal voltage at degree of pollution 3 signal	200 V~
Test voltage signal	1500 V~
Insulation resistance signal	> 10^8 Ω
max. contact resistance signal	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device

Insert

Discover the reliable M23 Single Circular Connector, designed for seamless solder connections with 12 poles and robust performance up to 8A at 500VAC. Crafted from durable materials, it ensures superior insulation and protection, making it ideal for various applications. Upgrade your connectivity with this high-quality connector that guarantees safety and efficiency in your projects.
