7001917104

Name: 7001917104 - Communica [Part No: 7001917104]
Brand: Hummel
SKU: 7001917104
Price: 355 ZAR
Availability: InStock

SKU: 7001917104

BRAND: Hummel

R 408.25_{(inc VAT)}
R 355.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

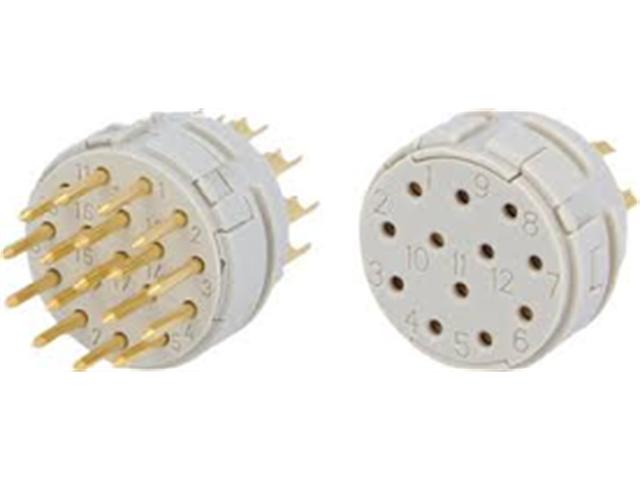

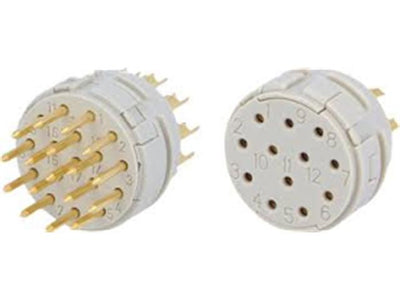

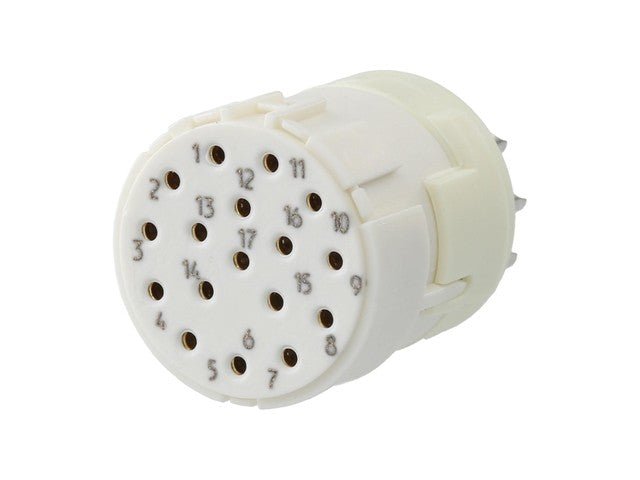

Circular Connector M23 Signal Female Solder Insert - 17 Pole - 17 x 1mm Contacts - 8A @ 400VAC Max.

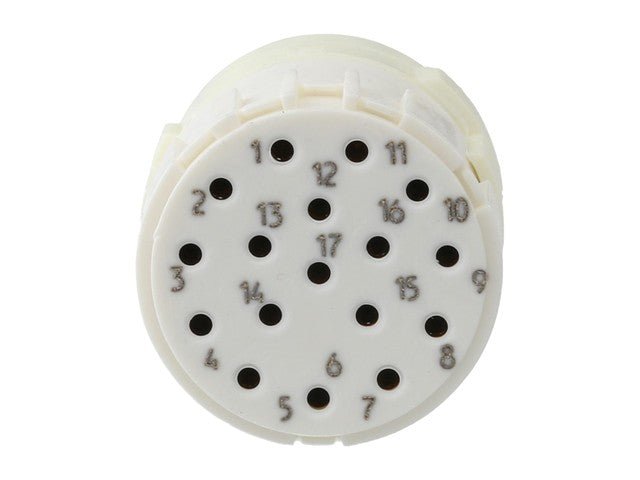

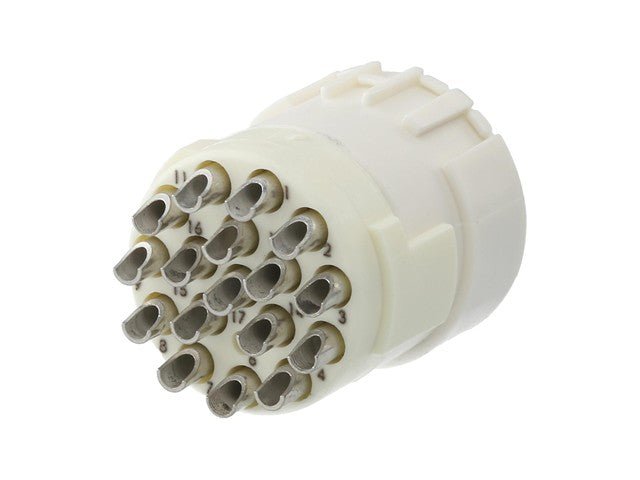

M23 Signal Female Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Solder connection
Number of poles:	17-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	left-hand rotation (standard)
Labelling:	1 - 17
Rated voltage:	Voltage: 160V
Rated current:	Power: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm²
Contact diameter:	1.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Solder Insert

Upgrade your connectivity with our M23 Single Circular Connector, featuring a durable female solder insert with 17 poles. Designed for optimal performance, it supports 8A at 400VAC max, ensuring reliable connections for your electrical applications. Perfect for enhancing efficiency and safety in your projects!
