7001919103

Name: 7001919103 - Communica [Part No: 7001919103]
Brand: Hummel
SKU: 7001919103
Price: 399.74 ZAR
Availability: InStock

SKU: 7001919103

BRAND: Hummel

R 459.70_{(inc VAT)}
R 399.74_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

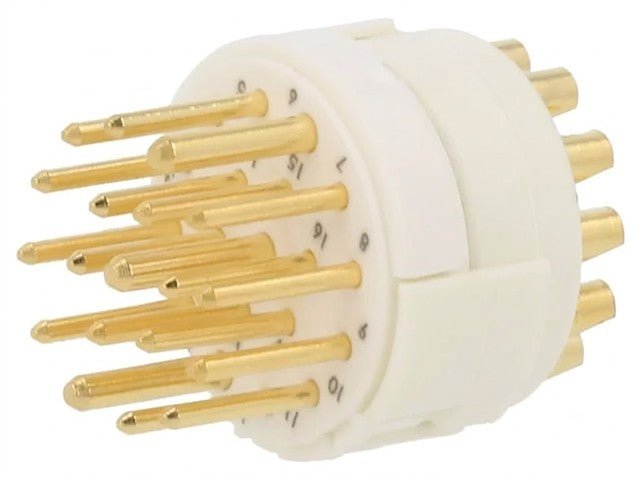

Circular Connector M23 Signal Male Solder Insert CW- 19 Pole, for 16x1mm/ 3x1,5mm Contacts - 8/10A @ 320VAC Max.

M23 Signal Male Solder Insert

Specifications

Characteristic of connection	Solder
Number of poles	19

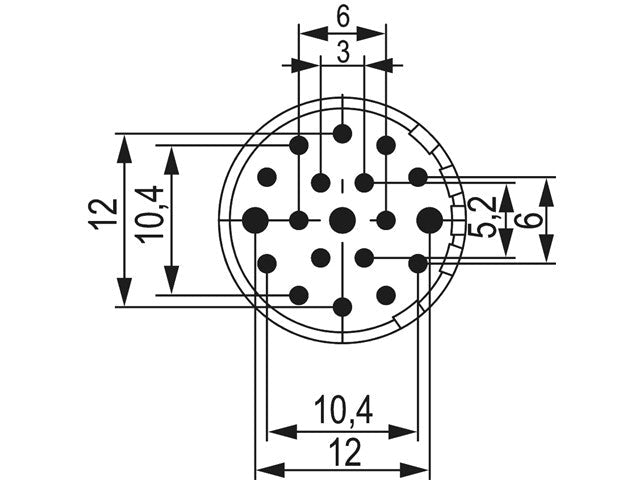

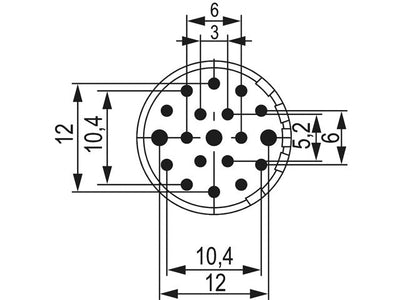

Pole picture	19
direction of rotation	Pinout clockwise
Insert	Pin
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	16
Number of contacts power	3
Contact-Ø signal	1 mm
Contact-Ø power	1.5 mm
Nominal current signal	8 A

Nominal current power	10 A
Nominal voltage at degree of pollution 3 signal	110 V~
Nominal voltage at degree of pollution 3 power	110 V~
Test voltage signal	370 V~
Test voltage power	840 V~
Insulation resistance signal	> 10^8 Ω
Insulation resistance power	> 10^8 Ω
max. contact resistance signal	3 mOhm
max. contact resistance power	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device

Solder Insert

Elevate your connections with our M23 Single Circular Connector. Designed for reliability, this 19-pole male solder insert ensures optimal performance at 8/10A and 320VAC max. Perfect for industrial applications, it delivers durability and efficiency for your projects.
