7001981104

Name: 7001981104 - Communica [Part No: 7001981104]
Brand: Hummel
SKU: 7001981104
Price: 209.79 ZAR
Availability: InStock

SKU: 7001981104

BRAND: Hummel

R 241.26_{(inc VAT)}
R 209.79_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

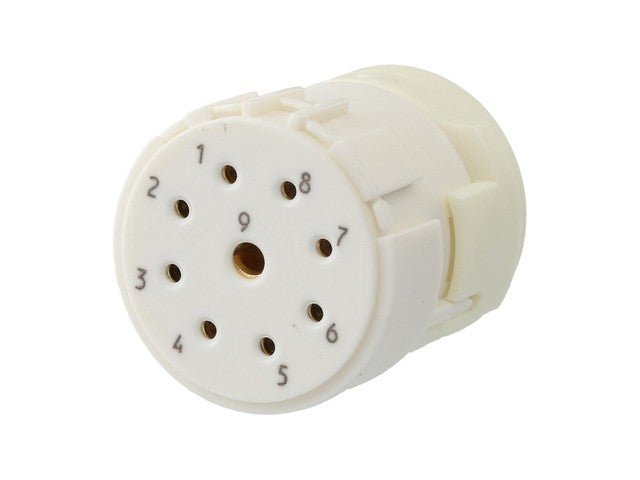

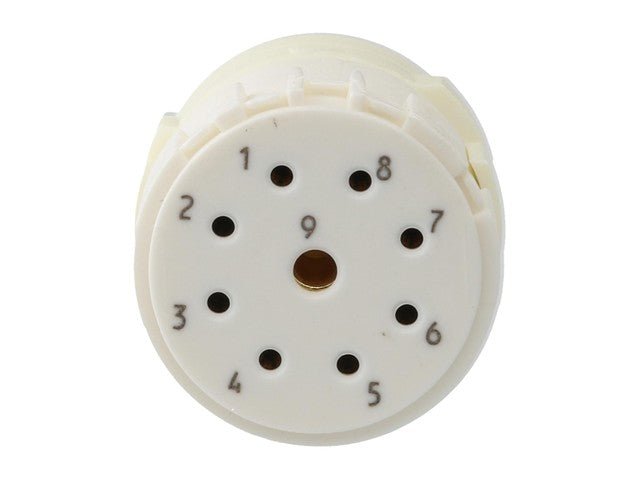

Circular Connector M23 Signal Female Solder Insert CW- 9 Pole - 8x1mm/1x2mm Contacts - 8/20A @ 500VAC Max.

M23 Signal Female Solder Insert

Specifications

Type:	Solder contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Solder connection
Number of poles:	9-pole 1/8
Coding:	N,S,H,X,Y
Coding direction:	left-hand rotation (standard)

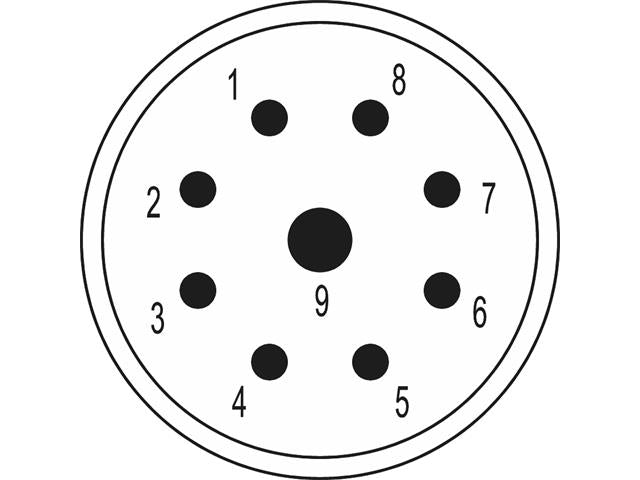

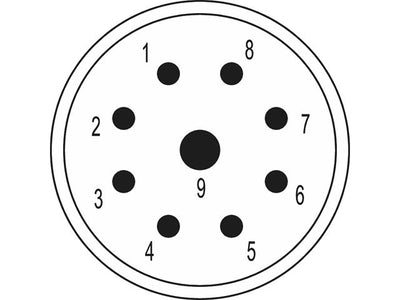

Labelling:	1 - 9
Rated voltage:	Power contact: 200V Control contact: 200V
Rated current:	Power contact: 20A Control contact: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm² / 0.75 mm²-2.5 mm²
Contact diameter:	1.0 mm/2.0 mm/
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6) Contact: Brass (CuZn) Contact surface: nickel-plated with gold plating (Au)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Solder Insert

Upgrade your connections with the M23 Single Circular Connector. Featuring a durable female solder insert with 9 poles, it ensures reliable performance at 8/20A and 500VAC max. Perfect for efficient and secure electrical setups, this connector is designed for versatility and longevity in various applications.
