7003912101

Name: 7003912101 - Communica [Part No: 7003912101]
Brand: Hummel
SKU: 7003912101
Price: 62.37 ZAR
Availability: InStock

SKU: 7003912101

BRAND: Hummel

R 71.73_{(inc VAT)}
R 62.37_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Crimp Insert Screw - 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max.

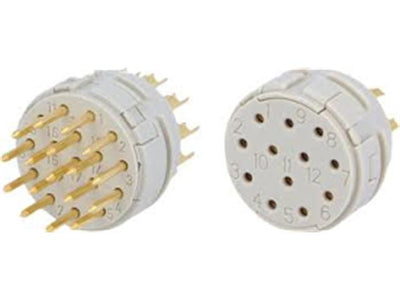

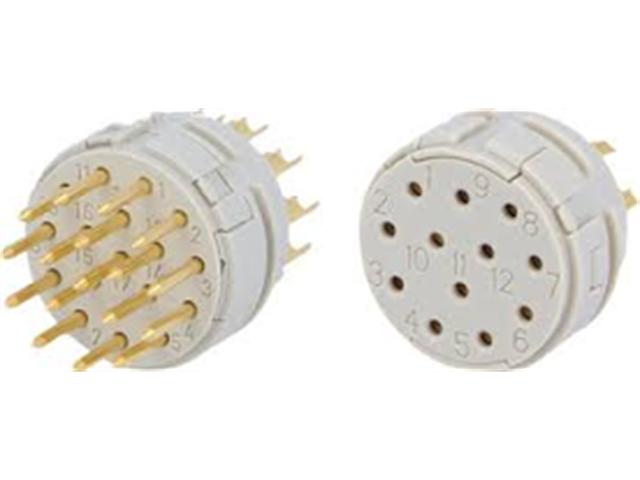

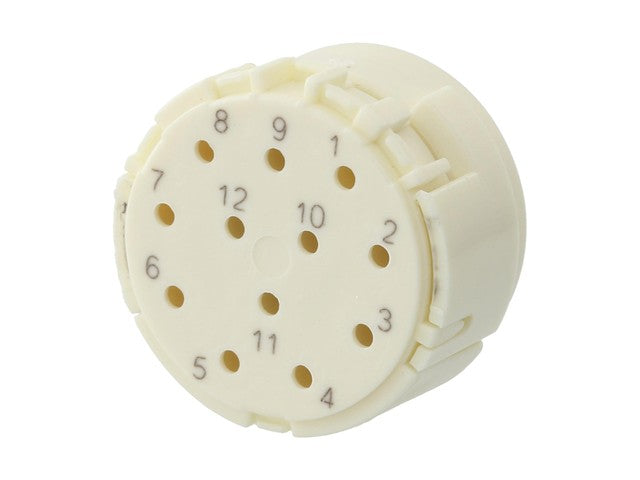

M23 Signal Male Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Crimp connection
Number of poles:	12-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	clockwise (standard)

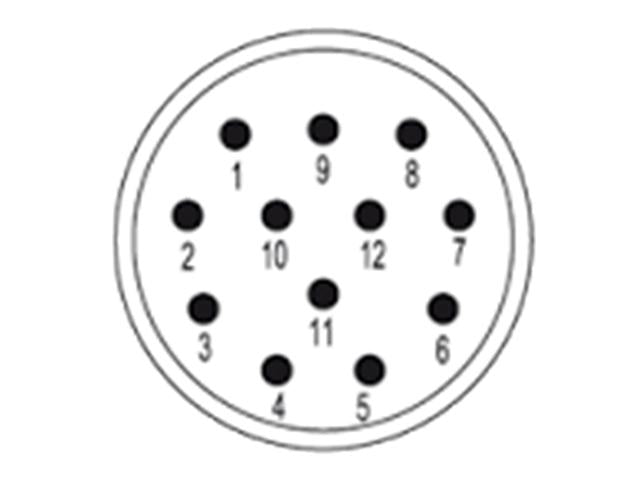

Labelling:	1 - 12
Rated voltage:	Voltage: 200V
Rated current:	Power: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm²
Contact diameter:	1.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Enhance your connectivity with the M23 Single Circular Connector. This reliable male crimp insert features 12 poles for secure connections, handling up to 20A at 500VAC. Perfect for industrial applications, it ensures durability and optimal performance, making it an essential choice for your projects.
