7003912112

Name: 7003912112 - Communica [Part No: 7003912112]
Brand: Hummel
SKU: 7003912112
Price: 58.08 ZAR
Availability: InStock

SKU: 7003912112

BRAND: Hummel

R 66.79_{(inc VAT)}
R 58.08_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Female Crimp Insert come with - 12 Pole (PE on Pos 9) for 12 x 1mm Contacts - 8/20A @ 500VAC Max.

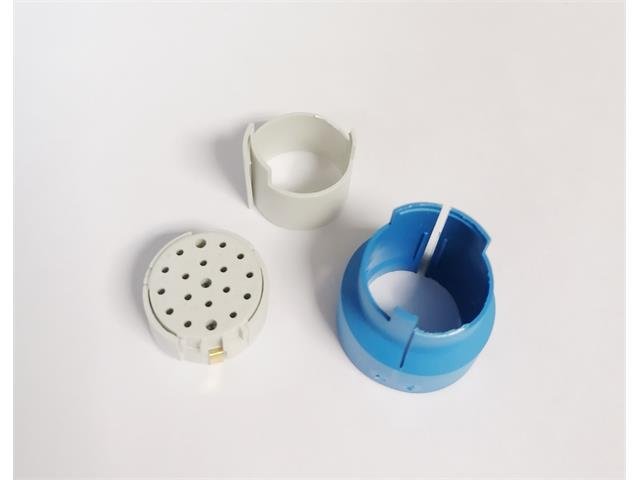

M23 Signal Female Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	12

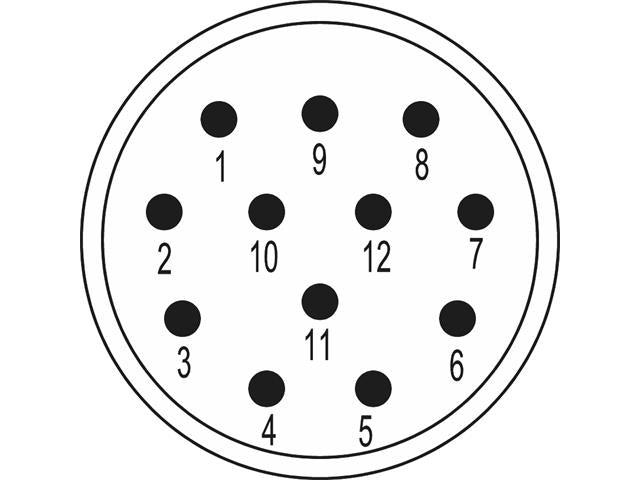

Pole picture	11 + PE (Pos.9)
Coding	Pos. 9 PE
	Pinout clockwise
Insert	Socket
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	12
Contact-Ø signal	1 mm

Terminal cross section signal	0,08 – 1,5 mm²
Nominal current signal	8 A
Nominal voltage at degree of pollution 3 signal	200 V~
Test voltage signal	1500 V~
Insulation resistance signal	> 10^8 Ω
max. contact resistance signal	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device

Insert

Discover the reliable M23 Single Circular Connector, designed with a 12-pole female crimp insert for superior performance. Ideal for 8/20A @ 500VAC applications, it delivers exceptional insulation and durability, ensuring seamless connectivity in demanding environments. Upgrade your connections with this robust and versatile connector today!
