7003917102

Name: 7003917102 - Communica [Part No: 7003917102]
Brand: Hummel
SKU: 7003917102
Price: 76.55 ZAR
Availability: InStock

SKU: 7003917102

BRAND: Hummel

R 88.03_{(inc VAT)}
R 76.55_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Female Crimp Insert and 17 Pole, for 1mm Contacts - 8A @ 400VAC Max.

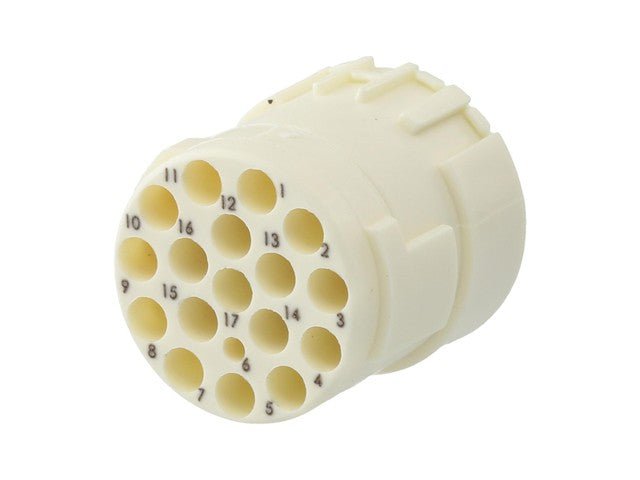

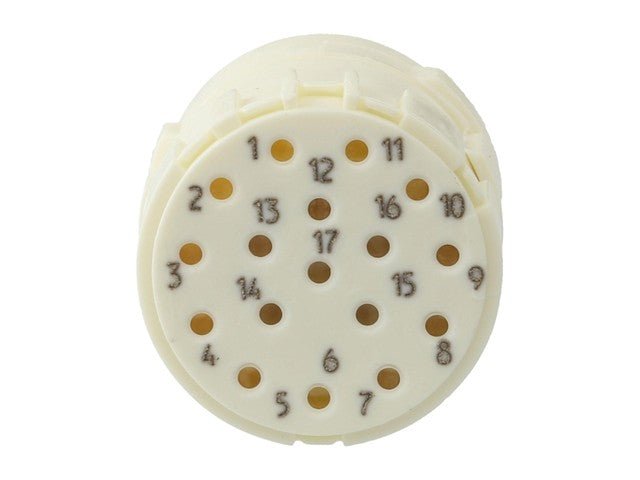

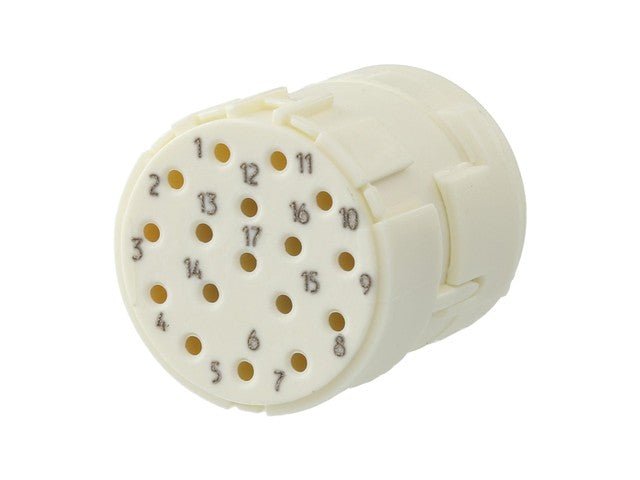

M23 Signal Female Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Crimp connection
Number of poles:	17-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	left-hand rotation (standard)

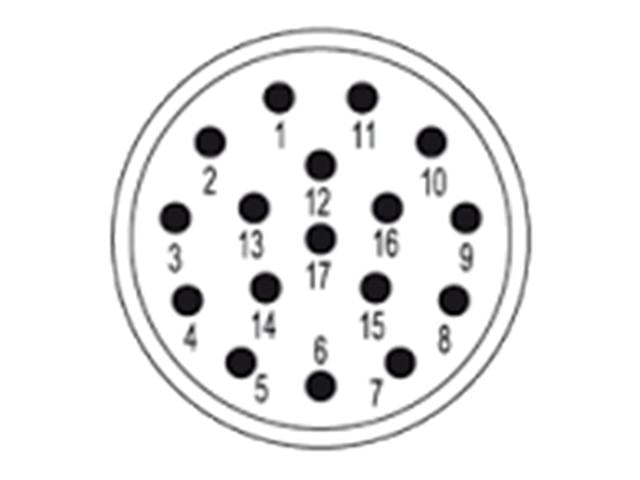

Labelling:	1 - 17
Rated voltage:	Voltage: 160V
Rated current:	Power: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm²
Contact diameter:	1.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Discover the reliability of our M23 Single Circular Connector, featuring a 17-pole female crimp insert designed for 1mm contacts. With a robust electrical rating of 8A at 400VAC max, this connector ensures optimal performance for your applications. Upgrade your connections with this durable and efficient solution today!
