7003919101

Name: 7003919101 - Communica [Part No: 7003919101]
Brand: Hummel
SKU: 7003919101
Price: 110.57 ZAR
Availability: InStock

SKU: 7003919101

BRAND: Hummel

R 127.16_{(inc VAT)}
R 110.57_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

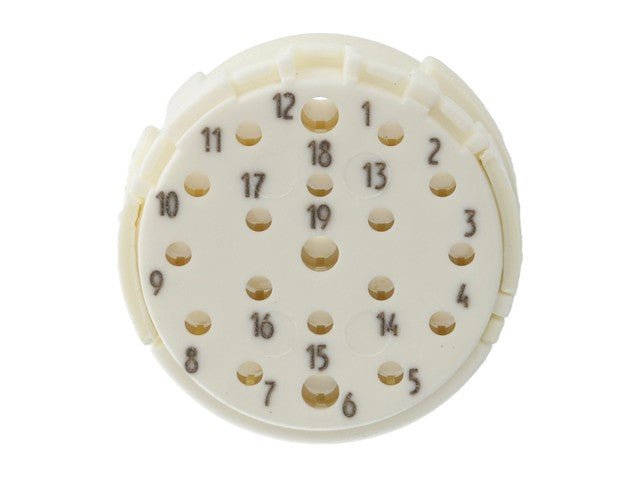

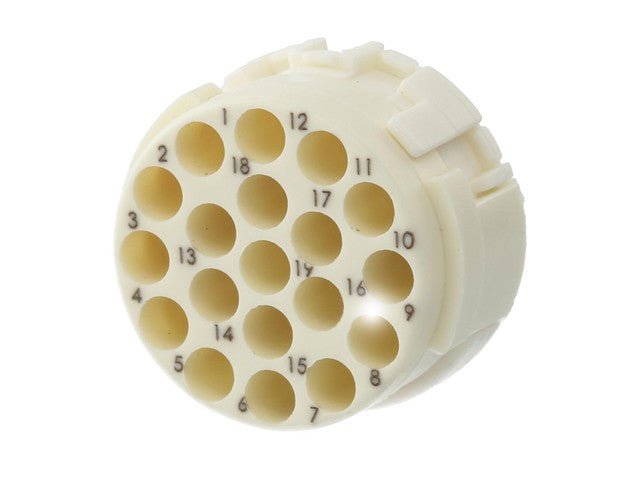

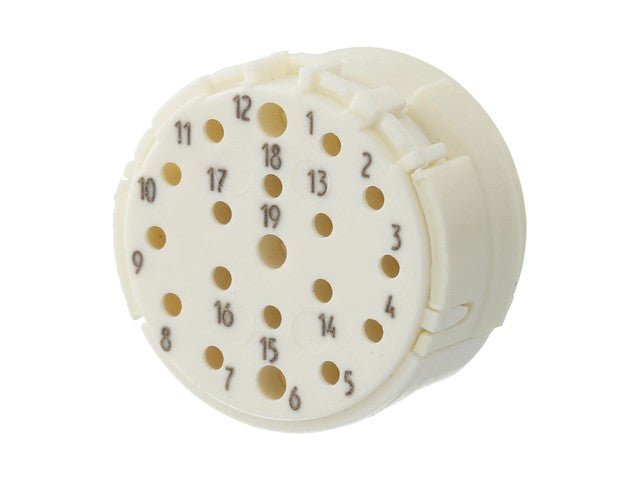

Circular Connector M23 Signal Male Crimp Insert CW- 19 Pole for 16x1mm/ 3x1,5mm Contacts - 8/10A @ 320VAC Max.

M23 Signal Male Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Crimp connection
Number of poles:	19-pole
Coding:	N,S,H,X,Y
Coding direction:	clockwise (standard)
Labelling:	1 - 19
Rated voltage:	Power contact: 100V Control contact: 100V
Rated current:	Power contact: 10A Control contact: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm² / 0.14 mm²-1 mm²
Contact diameter:	1.0 mm/1.5 mm/
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Upgrade your connections with our M23 Single Circular Connector. Designed for reliability, this male crimp insert features 19 poles, perfect for 16x1mm and 3x1.5mm contacts, supporting up to 10A at 320VAC. Ensure optimal performance and durability in your electrical applications today!
