7003919102

Name: 7003919102 - Communica [Part No: 7003919102]
Brand: Hummel
SKU: 7003919102
Price: 113.40 ZAR
Availability: InStock

SKU: 7003919102

BRAND: Hummel

R 130.41_{(inc VAT)}
R 113.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

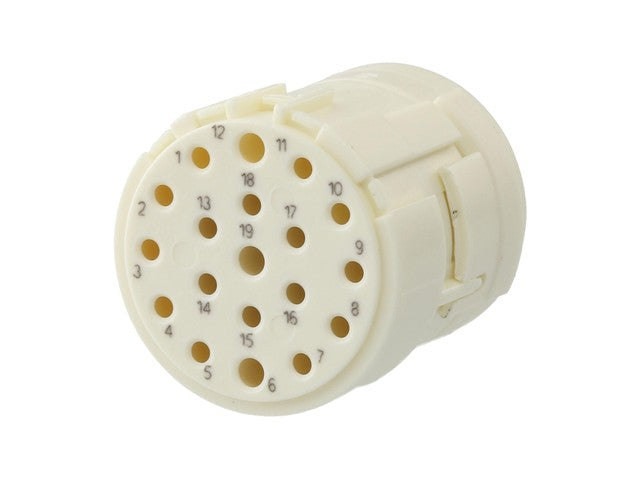

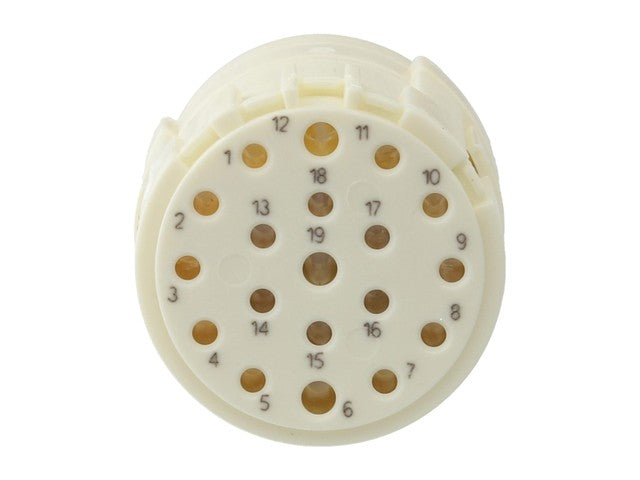

Circular Connector M23 Signal Female Crimp Insert CW- 19 Pole for 16x1mm/3x1,5mm COntacts - 8/10A @ 320VAC Max.

M23 Signal Female Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Crimp connection
Number of poles:	19-pole
Coding:	N,S,H,X,Y
Coding direction:	left-hand rotation (standard)

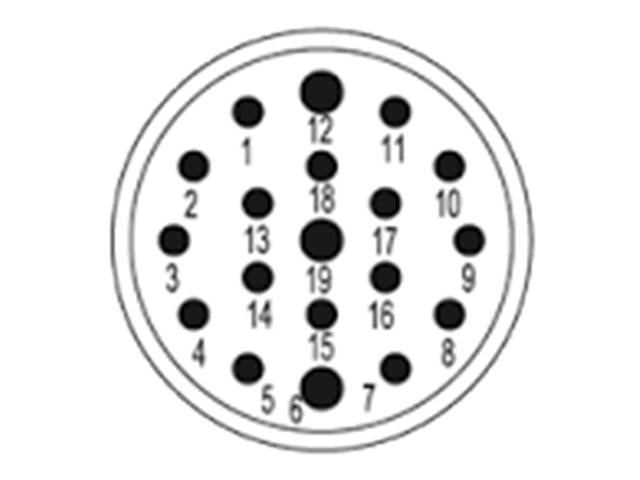

Labelling:	1 - 19
Rated voltage:	Power contact: 100V Control contact: 100V
Rated current:	Power contact: 10A Control contact: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm² / 0.14 mm²-1 mm²
Contact diameter:	1.0 mm/1.5 mm/
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Upgrade your connections with the M23 Female Crimp Insert, designed for optimal performance with 19 poles and a robust electrical rating of 8/10A at 320VAC. This reliable circular connector ensures secure and efficient power delivery, making it perfect for demanding applications. Experience durability and ease of use with this essential component for your projects.
