Name: 7003919111 - Communica [Part No: 7003919111]
Brand: Hummel
SKU: 7003919111
Price: 103.25 ZAR
Availability: InStock

SKU: 7003919111

BRAND: Hummel

R 118.74_{(inc VAT)}
R 103.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Crimp Insert come with 19 Pole (PE on Pos 12) FOR 16x1mm/ 3x1,5mm Contacts - 8/10A @ 320VAC Max.

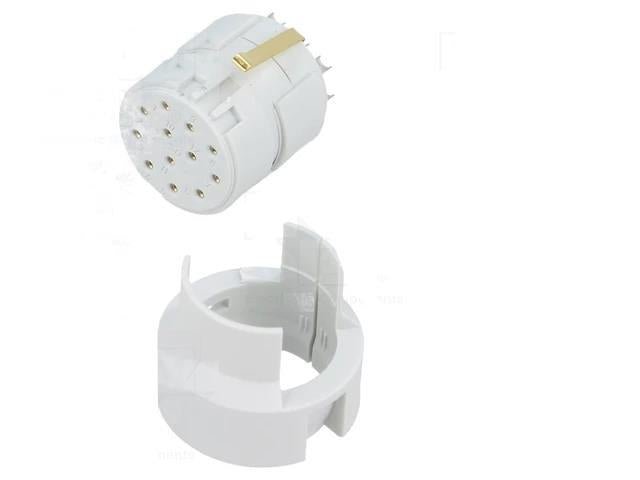

M23 Signal Male Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	19

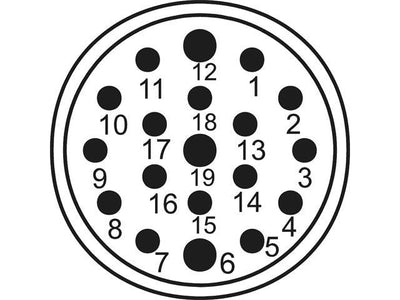

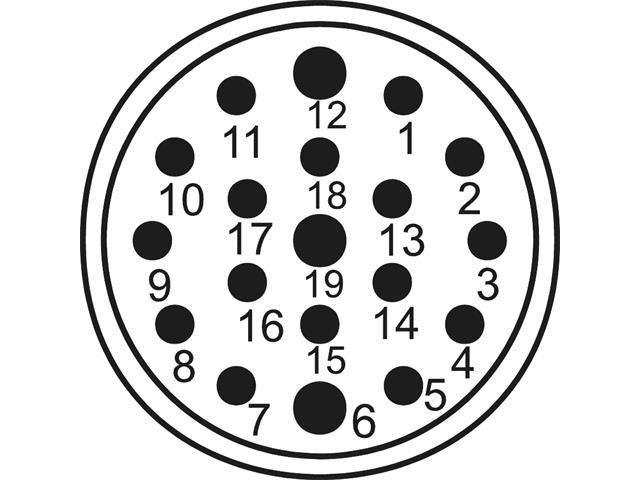

Pole picture	18 + PE (Pos. 12)
Coding	Pos. 12 PE
	Pinout clockwise
Insert	Pin
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	16
Number of contacts power	3
Contact-Ø signal	1 mm
Contact-Ø power	1.5 mm
Terminal cross section power	0,14 – 1 mm²

Nominal current signal	8 A
Nominal current power	10 A
Nominal voltage at degree of pollution 3 signal	110 V~
Nominal voltage at degree of pollution 3 power	110 V~
Test voltage signal	840 V~
Test voltage power	840 V~
Insulation resistance signal	> 10^8 Ω
Insulation resistance power	> 10^8 Ω
max. contact resistance signal	3 mOhm
max. contact resistance power	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device

Crimp Insert

Upgrade your connectivity with the M23 Signal Circular Connector. Featuring a durable 19-pole design and reliable crimp inserts, this connector supports 8/10A at 320VAC, ensuring optimal performance in demanding environments. With a wide temperature range and exceptional insulation resistance, it's perfect for both signal and power applications. Enhance your projects with this robust, high-quality connector today!
