7003981101

Name: 7003981101 - Communica [Part No: 7003981101]
Brand: Hummel
SKU: 7003981101
Price: 65.21 ZAR
Availability: InStock

SKU: 7003981101

BRAND: Hummel

R 74.99_{(inc VAT)}
R 65.21_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Crimp Insert CW- 9 Pole for 8x1mm/ 1x2mm Contacts - 8/20A @ 500VAC Max.

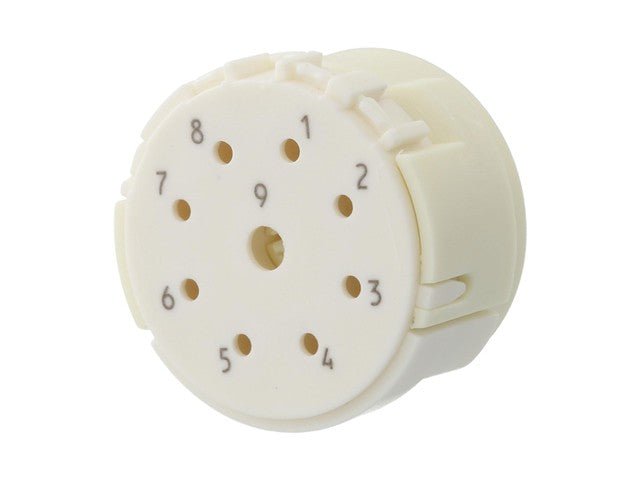

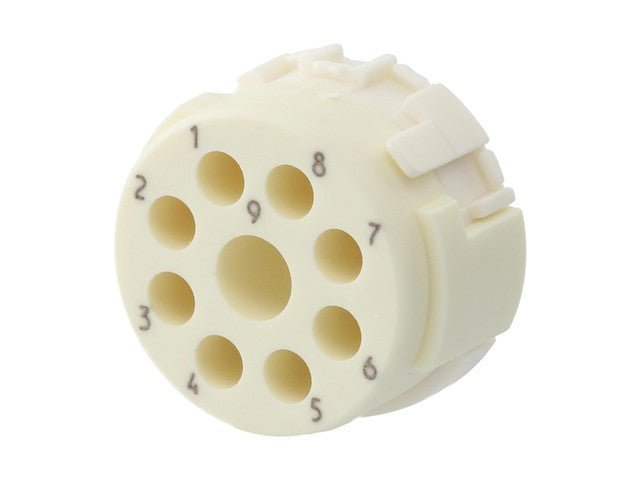

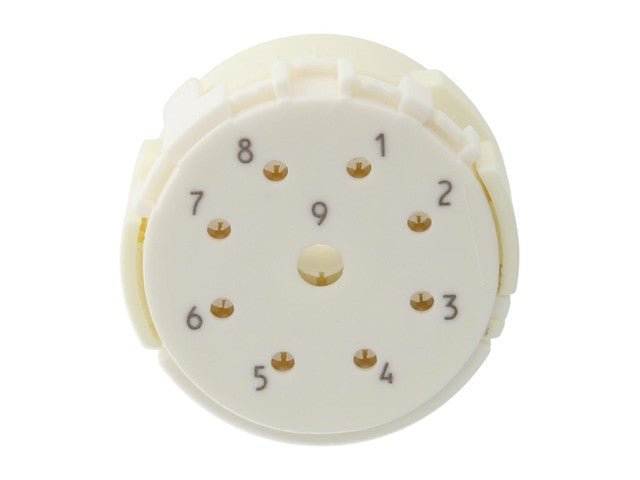

M23 Signal Male Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Pin
Connection technology:	Crimp connection
Number of poles:	9-pole 1/8
Coding:	N,S,H,X,Y
Coding direction:	clockwise (standard)

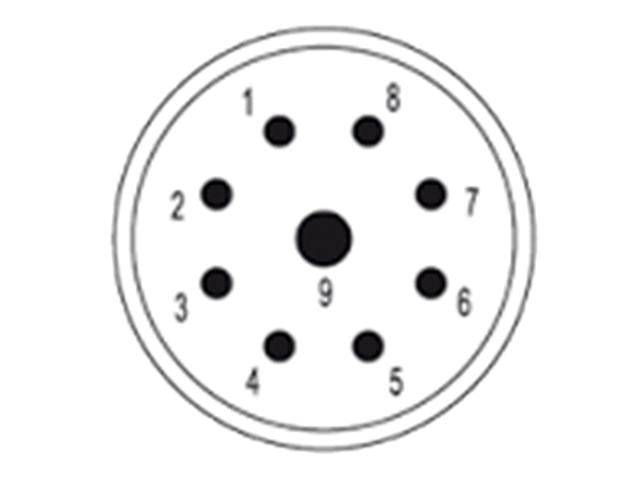

Labelling:	1 - 9
Rated voltage:	Power contact: 200V Control contact: 200V
Rated current:	Power contact: 20A Control contact: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm² / 0.75 mm²-2.5 mm²
Contact diameter:	1.0 mm/2.0 mm/
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Elevate your connectivity with the M23 Single Circular Connector. Featuring a durable male crimp insert with 9 poles, it supports 8/20A at 500VAC max, ensuring reliable performance for your devices. Perfect for seamless integration, this connector is designed for efficiency and longevity in demanding applications.
