7003981102

Name: 7003981102 - Communica [Part No: 7003981102]
Brand: Hummel
SKU: 7003981102
Price: 65.21 ZAR
Availability: InStock

SKU: 7003981102

BRAND: Hummel

R 74.99_{(inc VAT)}
R 65.21_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

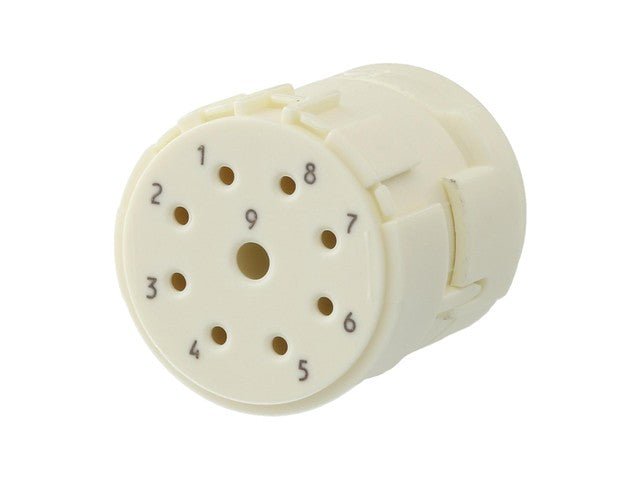

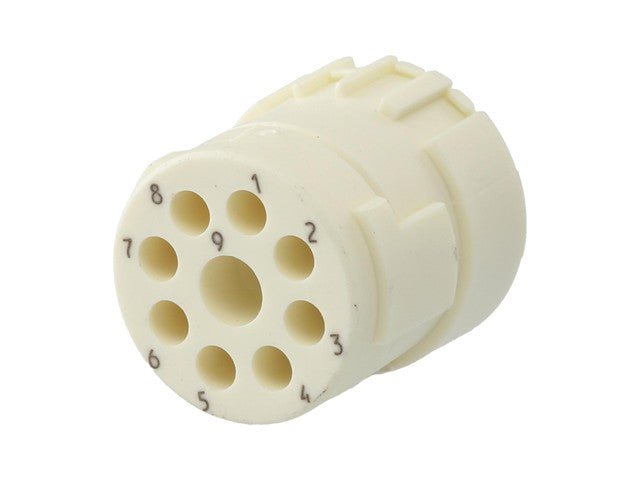

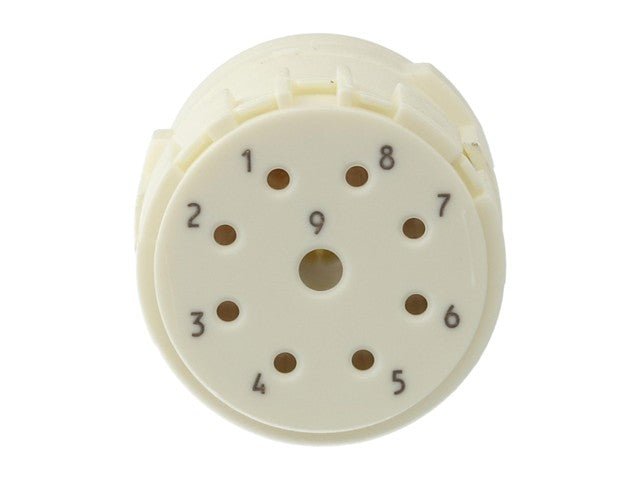

Circular Connector M23 Signal Female Crimp Insert CW- 9 Pole for 8x1mm/1x2mm Contacts - 8/20A @ 500VAC Max.

M23 Signal Female Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	9

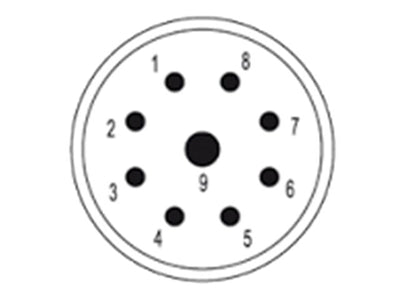

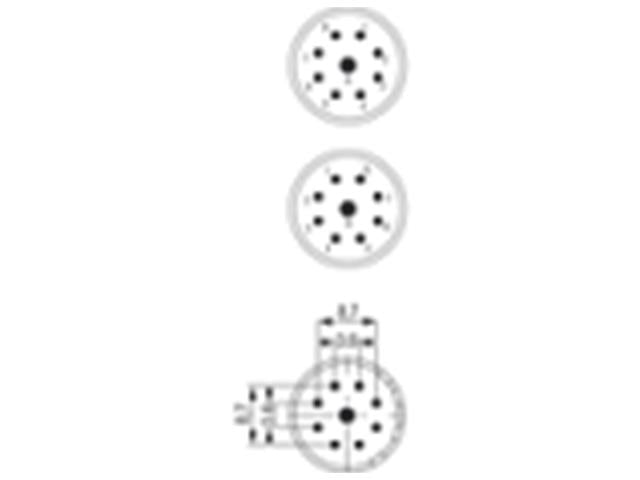

Pole picture	8 + 1
direction of rotation	Pinout clockwise
Insert	Socket
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	8
Number of contacts power	1

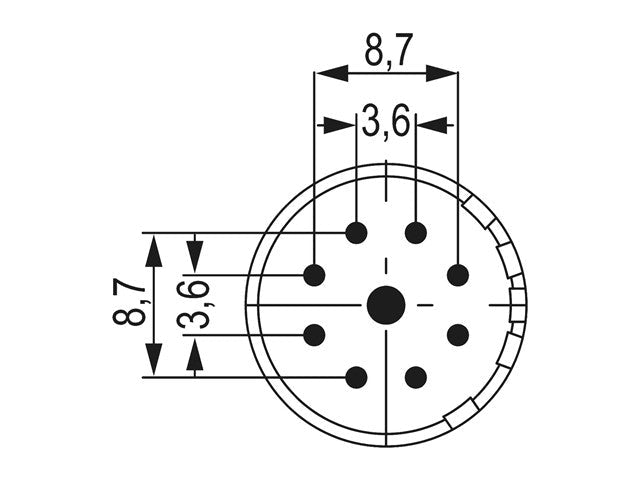

Contact-Ø signal	1 mm
Contact-Ø power	2 mm
Terminal cross section power	0,75 – 2,5 mm²
Nominal current signal	8 A

Nominal current power	20 A
Nominal voltage at degree of pollution 3 signal	200 V~
Nominal voltage at degree of pollution 3 power	200 V~
Test voltage signal	1500 V~
Test voltage power	1500 V~
Insulation resistance signal	> 10^8 Ω
Insulation resistance power	> 10^8 Ω
max. contact resistance signal	3 mOhm
max. contact resistance power	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device

Crimp Insert

Upgrade your connections with the M23 Single Circular Connector. Designed for 8x1mm/1x2mm contacts, this durable female crimp insert offers reliable performance with a maximum rating of 8/20A at 500VAC. Perfect for enhancing your electrical setups, it ensures secure and efficient connectivity for your projects.
