7004912101

Name: 7004912101 - Communica [Part No: 7004912101]
Brand: Hummel
SKU: 7004912101
Price: 62.37 ZAR
Availability: InStock

SKU: 7004912101

BRAND: Hummel

R 71.73_{(inc VAT)}
R 62.37_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

Circular Connector M23 Signal Male Crimp Insert Screw- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max.

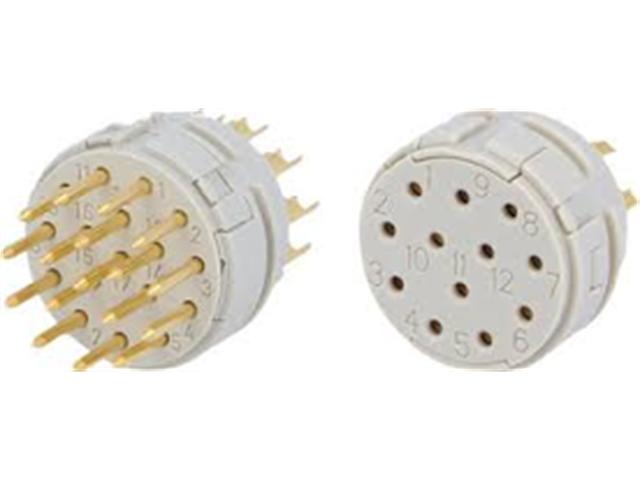

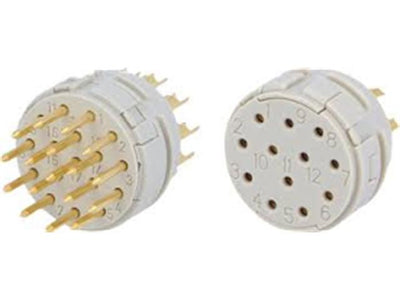

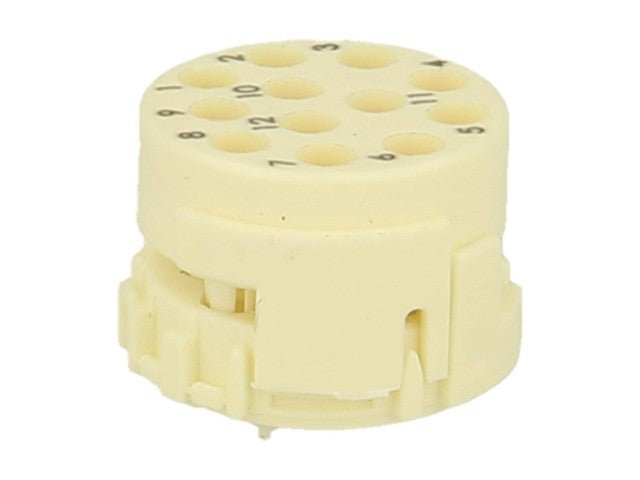

M23 Signal Male Crimp Insert Screw

Specifications

Characteristic of connection	Crimp
Number of poles	12
Pole picture	12
direction of rotation	Pinout counter-clockwise
Insert	Pin
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	12
Contact-Ø signal	1 mm

Terminal cross section signal	0,08 – 1,5 mm²
Nominal current signal	8 A
Nominal voltage at degree of pollution 3 signal	200 V~
Test voltage signal	840 V~
Insulation resistance signal	> 10^8 Ω
max. contact resistance signal	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Additional Information

Device	Insert Screw
Electrical Rating	8/20A @ 500VAC Max

Elevate your connectivity with our M23 Single Male Crimp Insert Connector, featuring 12 poles for 12 x 1mm contacts. Designed for robust performance at 8/20A and 500VAC, this reliable connector ensures secure and efficient electrical connections for your devices. Perfect for industrial applications, it delivers exceptional durability and ease of installation.
