7004912102

Name: 7004912102 - Communica [Part No: 7004912102]
Brand: Hummel
SKU: 7004912102
Price: 65.21 ZAR
Availability: InStock

SKU: 7004912102

BRAND: Hummel

R 74.99_{(inc VAT)}
R 65.21_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

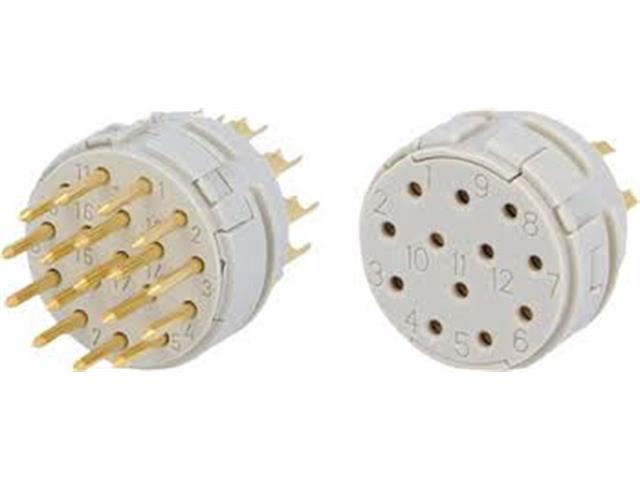

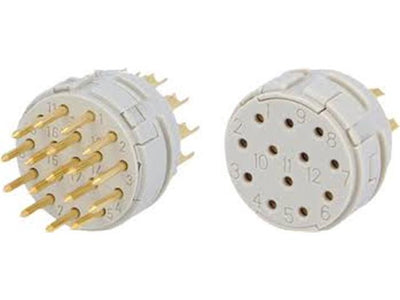

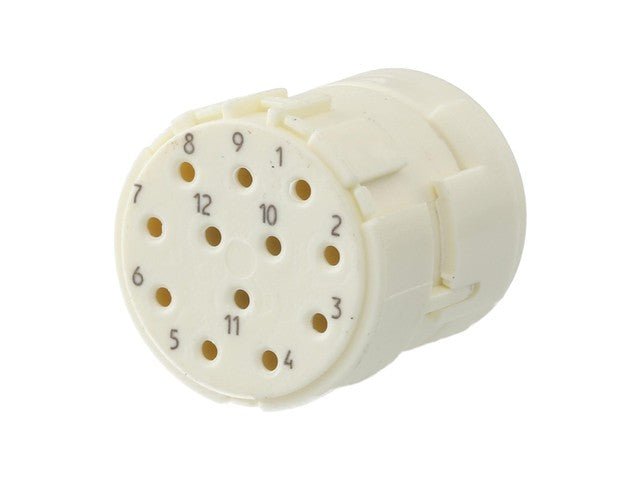

Circular Connector M23 Signal Female Crimp Insert CCW- 12 Pole for 12 x 1mm Contacts - 8/20A @ 500VAC Max.

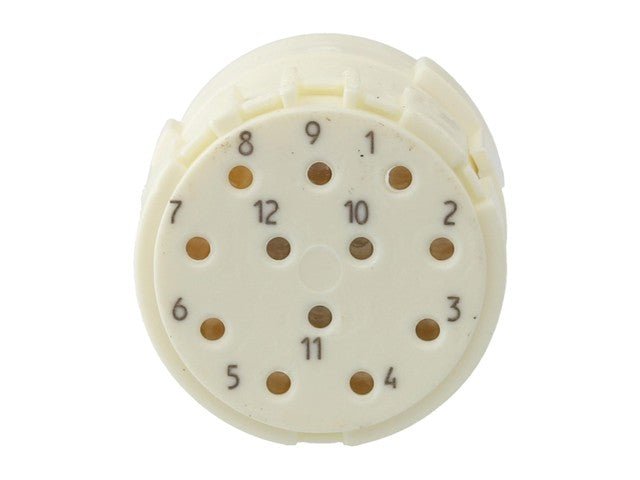

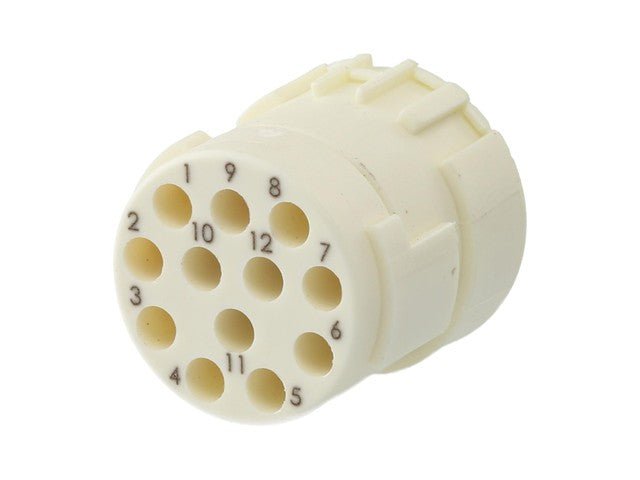

M23 Signal Female Crimp Insert

Specifications

Type:	Crimp contact insert
Series:	M23 Signal
Design:	Socket
Connection technology:	Crimp connection
Number of poles:	12-pole
Coding:	N,S,H,X,Y,Z
Coding direction:	clockwise (counter-rotation)

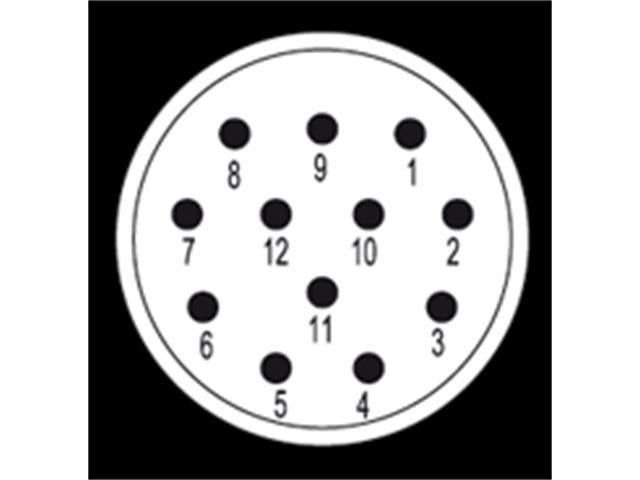

Labelling:	1 - 12
Rated voltage:	Voltage: 200V
Rated current:	Power: 8A
Pollution level:	3
Cross-section:	mm²: 0.08 mm²-1.5 mm²
Contact diameter:	1.0 mm
Temperature range:	-40°C to 125°C
Mating cycles:	>=1000
Material:	Insulating material: Polybutylene terephthalate (PBT)/polyamide (PA6)
Colour:	Colour shade: white
Matching data:	Signal plug / signal connector

Additional Information

Device

Crimp Insert

Discover the M23 Single Circular Connector, designed for reliable connections with 12 poles for 12 x 1mm contacts. With a robust 8/20A rating at 500VAC, it ensures optimal performance in demanding environments. Upgrade your connectivity solutions today!
