Name: 7004912111 - Communica [Part No: 7004912111]
Brand: Hummel
SKU: 7004912111
Price: 84.23 ZAR
Availability: InStock

SKU: 7004912111

BRAND: Hummel

R 96.86_{(inc VAT)}
R 84.23_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

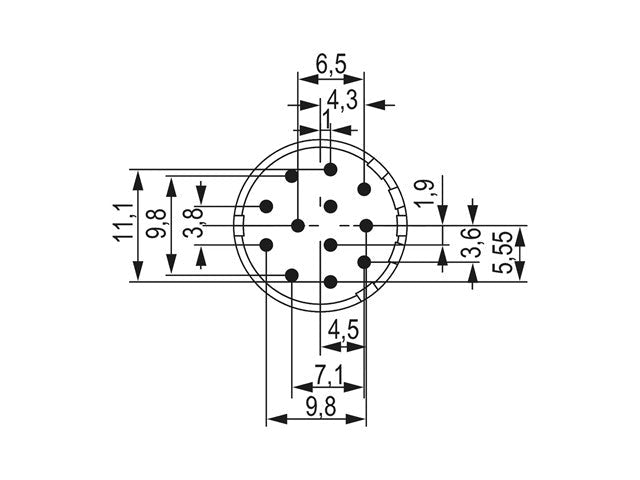

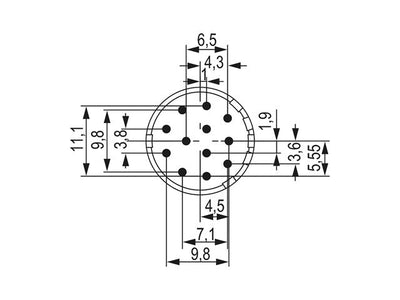

Circular Connector M23 Signal Male Crimp Insert CCW- 12 Pole (PE on Pos 9) FOR 12 x 1mm Contacts - 8/20A @ 500VAC Max.

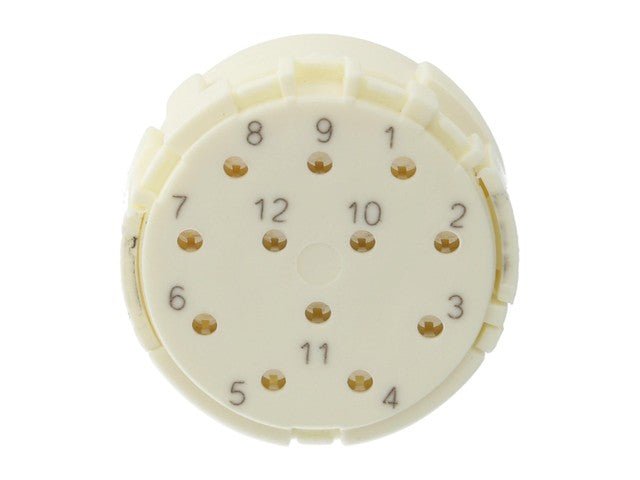

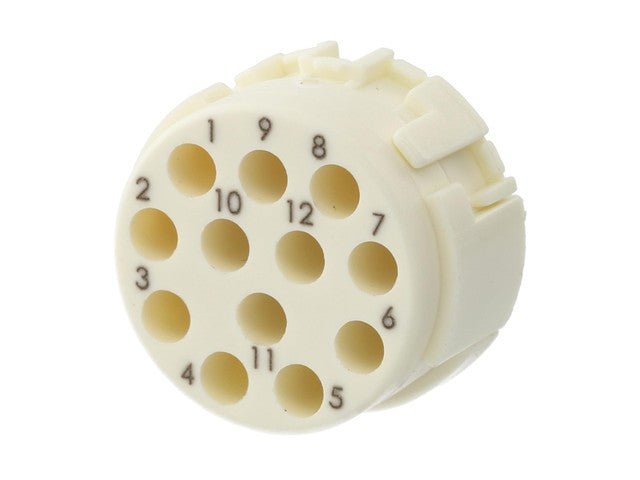

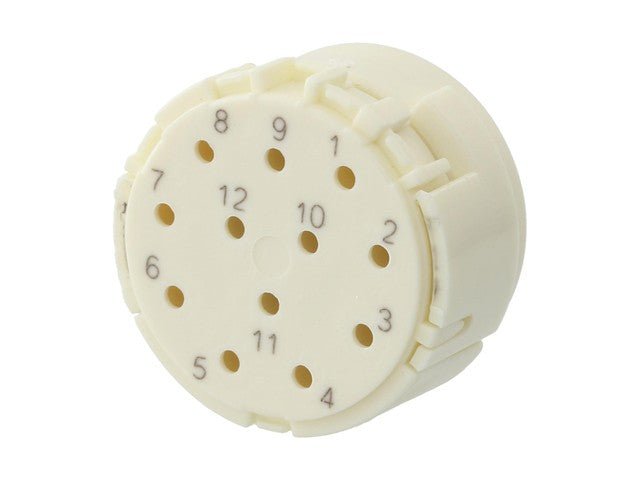

M23 Signal Male Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	12
Pole picture	11 + PE (Pos.9)
Coding	Pos. 9 PE
	Pinout counter-clockwise
Insert	Pin
Color contact insert	white
Material insulating body	PA 6, PBT
Number of contacts signal	12
Contact-Ø signal	1 mm

Terminal cross section signal	0,08 – 1,5 mm²
Nominal current signal	8 A
Nominal voltage at degree of pollution 3 signal	200 V~
Test voltage signal	1500 V~
Insulation resistance signal	> 10^8 Ω
max. contact resistance signal	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)

Downloads

Datasheet - 7004912111

Additional Information

Device

Crimp Insert

Upgrade your connectivity with the M23 Circular Connector 7004912111. This 12-pole male crimp insert ensures reliable performance with 8/20A at 500VAC, perfect for demanding applications. Its durable PA 6 and PBT materials withstand temperatures from -40°C to +125°C, providing long-lasting reliability. Enhance your system’s efficiency with this high-quality connector designed for optimal signal transmission.
