7004912112

SKU: 7004912112

BRAND: Hummel


Circular Connector M23 Signal. Female Crimp Insert CCW- 12 Pole (PE on Pos 9) for 12 x 1mm Contacts - 8/20A @ 500VAC Max.

M23 Signal Circular Connector

Specifications

Characteristic of connection Crimp
Number of poles 12

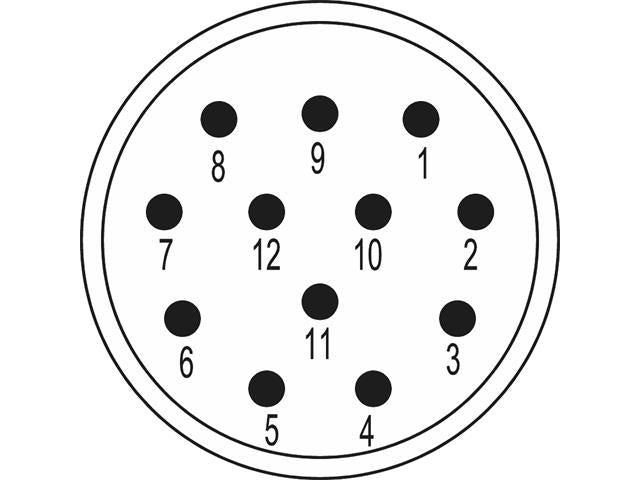

Pole picture 11 + PE (Pos.9)
Coding Pos. 9 PE
  Pinout counter-clockwise
Insert Socket
Color contact insert white
Material insulating body PA 6,
PBT
Number of contacts signal 12
Contact-Ø signal 1 mm
Terminal cross section signal 0,08 – 1,5 mm²
Nominal current signal 8 A
Nominal voltage at degree of pollution 3 signal 200 V~
Test voltage signal 1500 V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Degree of Protection 3
Flammability V-0 (UL 94)

Additional Information

Device Connector
Type M23 | Signal | Circular
