7084943121

Name: 7084943121 - Communica [Part No: 7084943121]
Brand: Hummel
SKU: 7084943121
Price: 182.70 ZAR
Availability: InStock

SKU: 7084943121

BRAND: Hummel

R 210.11_{(inc VAT)}
R 182.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Circular Connector M23 Power Male Crimp Insert 8 Pole(4+3+PE) for 4x1mm/4x2mm Contacts - 8/28A @ 300/500VAC MAX.

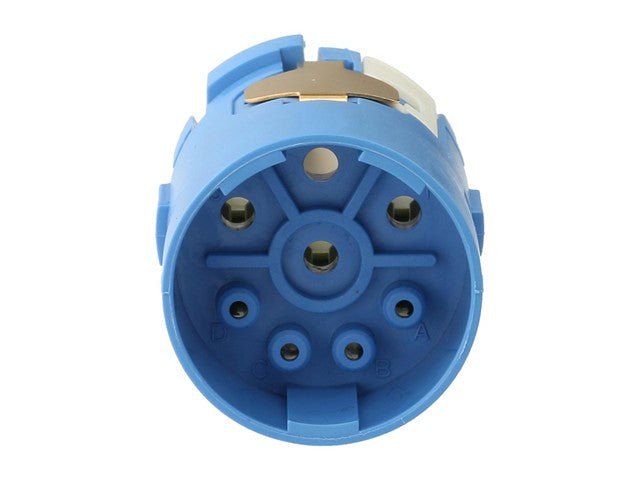

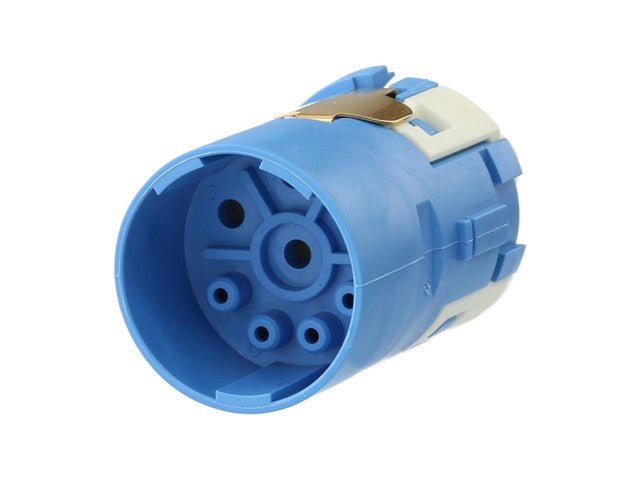

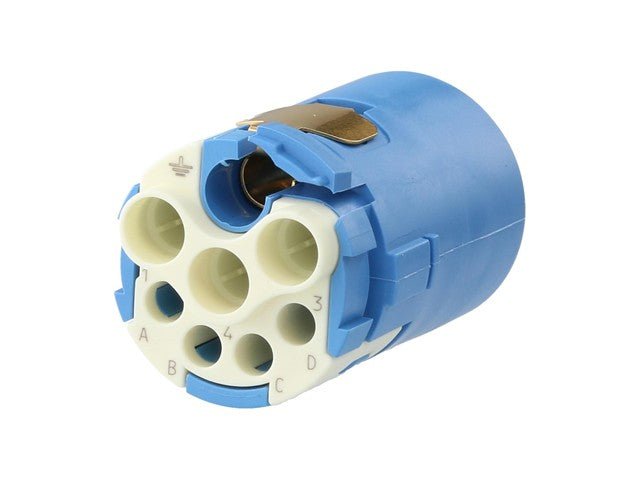

M23 Power Male Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	8

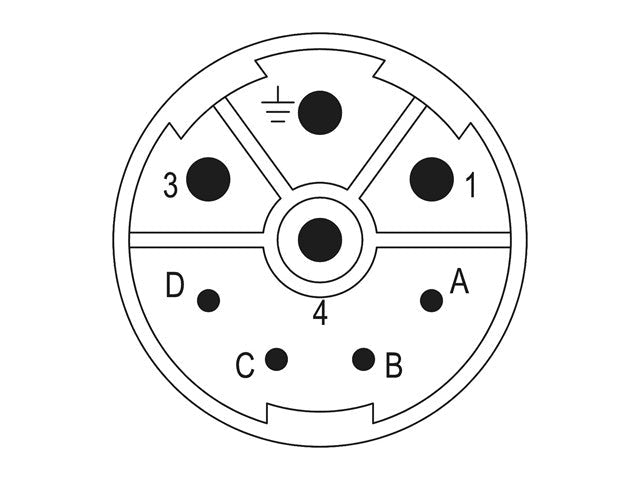

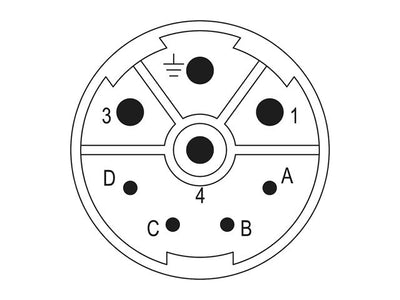

Pole picture	4 + 3 + PE
Insert	Pin
Color contact insert	blue
Material insulating body	PBT
Number of contacts signal	4
Number of contacts power	3
Number of contacts PE	1
Contact-Ø signal	1 mm
Contact-Ø power	2 mm
Terminal cross section signal	0,14 – 1,5 mm²
Terminal cross section power	0,75 – 4 mm²

Nominal current signal	8 A
Nominal current power	30 A
Nominal voltage at degree of pollution 3 power	600 V~
Test voltage signal	2500 V~
Test voltage power	4000 V~
Insulation resistance signal	> 10^13 Ω
max. contact resistance signal	3 mOhm
max. contact resistance power	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)
Suitable Signal contacts	7010941001, 7010941021
Suitable power contacts	7010942001, 7010942011

Additional Information

Device	Crimp Insert
Type	M23 \| Power \| Male

Discover the reliable M23 Power Male Crimp Insert, designed for optimal performance in demanding environments. With 8 poles (4+3+PE) and robust insulation, it ensures safe connections for your power and signal needs. Ideal for heavy-duty applications, this connector guarantees high efficiency and durability, making it a perfect choice for your electrical projects.
