Name: 7084943122 - Communica [Part No: 7084943122]
Brand: Hummel
SKU: 7084943122
Price: 182.70 ZAR
Availability: InStock

SKU: 7084943122

BRAND: Hummel

R 210.11_{(inc VAT)}
R 182.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Inserts & Modules

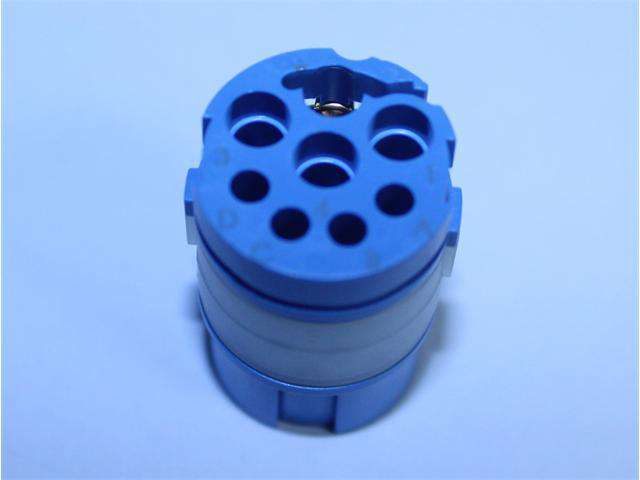

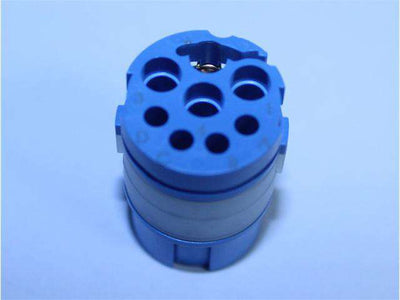

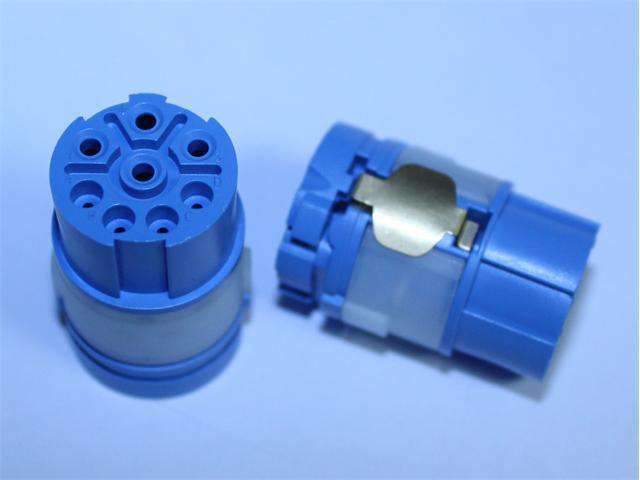

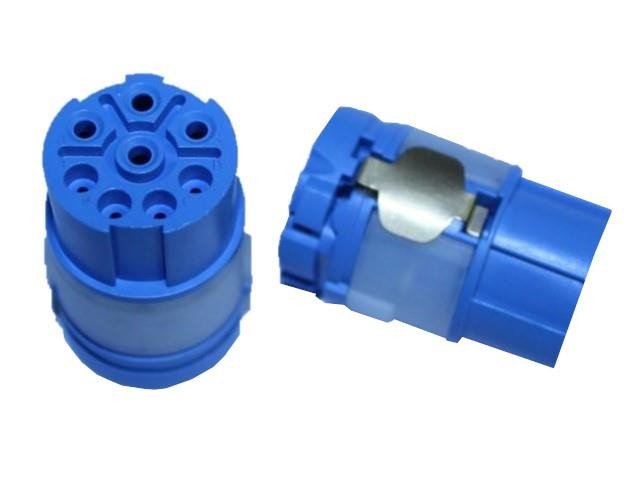

Circular Connector M23 Power Female Crimp Insert 8 Pole(4+3+PE) for 4x1mm/4x2mm Contacts and 8/28A @ 300/500VAC Max.

M23 Power Female Crimp Insert

Specifications

Characteristic of connection	Crimp
Number of poles	8

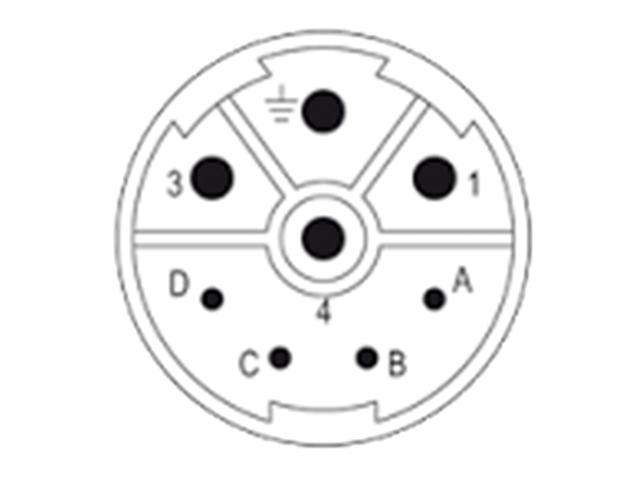

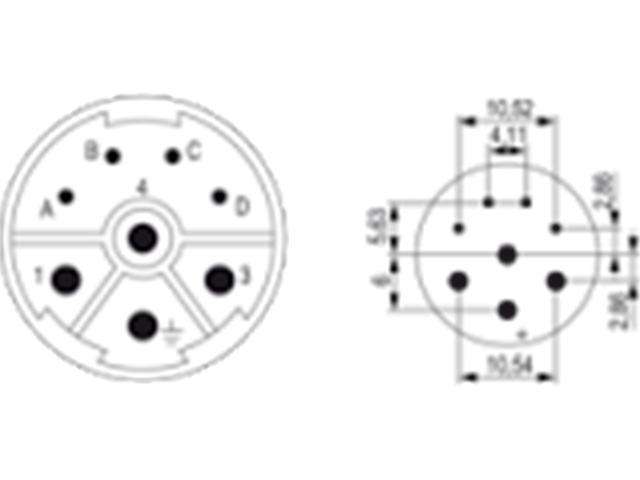

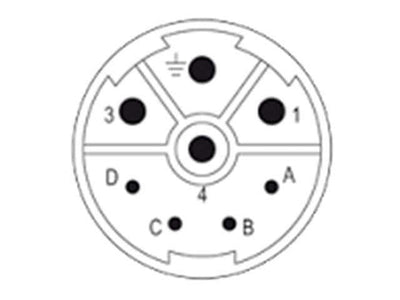

Pole picture	4 + 3 + PE
Insert	Socket
Color contact insert	blue
Material insulating body	PBT
Number of contacts data	2
Number of contacts signal	4
Number of contacts power	3
Number of contacts PE	1
Contact-Ø signal	1 mm
Contact-Ø power	2 mm
Terminal cross section signal	0,14 – 1,5 mm²
Terminal cross section power	0,75 – 4 mm²
Nominal current signal	8 A

Nominal current power	30 A
Nominal voltage at degree of pollution 3 signal	300 V~
Nominal voltage at degree of pollution 3 power	600 V~
Test voltage signal	2500 V~
Test voltage power	4000 V~
Insulation resistance signal	> 10^13 Ω
Insulation resistance power	> 10^13 Ω
max. contact resistance signal	3 mOhm
max. contact resistance power	3 mOhm
Temperature range	-40°C to +125°C
Degree of Protection	3
Flammability	V-0 (UL 94)
Suitable Signal contacts	7010941002, 7010941022
Suitable power contacts	7010942002, 7010942012

Additional Information

Device	Crimp Insert
Type	M23 \| Power \| Female \| 4+3+PE
Electrical Rating	8/28A @ 300/500VAC Max

Elevate your connectivity with the M23 Power Female Crimp Insert, featuring 8 poles (4+3+PE) for seamless integration. Designed for durability and high performance, it supports up to 30A at 600V, ensuring reliable power delivery in demanding environments. Perfect for industrial applications, this connector is your go-to solution for robust and efficient electrical connections.
